Circuit diagram: (A/T)

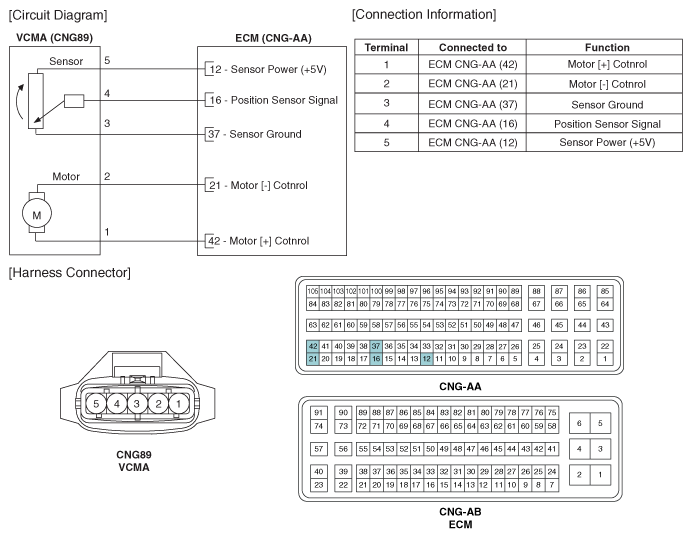

Fig 1: Variable Charge Motion Actuator Circuit Diagram (A/T)

G10234937

Courtesy of HYUNDAI MOTOR AMERICA
