Components and Components Location: Components

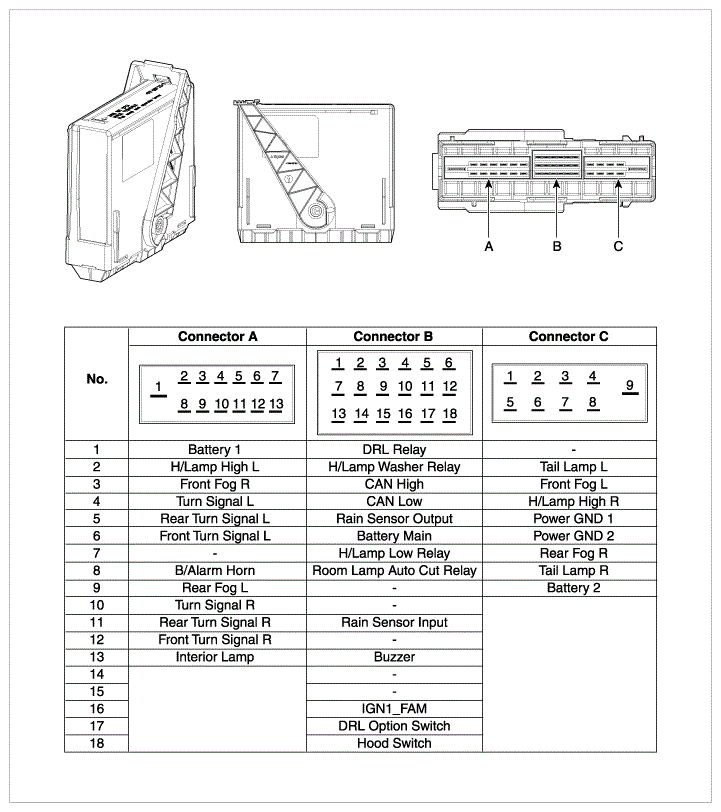

Fig 1: Identifying Front Area Module Connectors

G08831865

Courtesy of HYUNDAI MOTOR AMERICA
