Scantool Data Analysis
- Connect GDS.
- IG "ON" and engine "OFF".

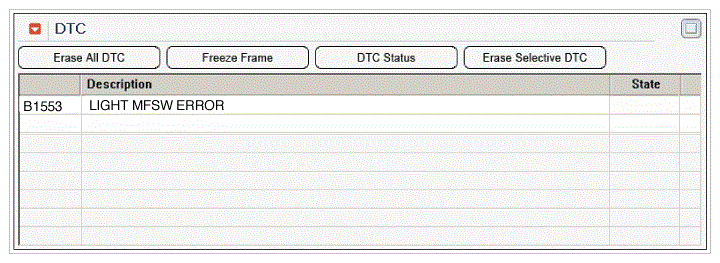

- Select "DTC Analysis" mode.
- After erase DTC, keep the vehicle condition within "the enable conditions" (Refer to "DTC DETECTING CONDITION " table).
- Is the same DTC occurred again?
YES
- Go to "SCANTOOL DATA ANALYSIS " procedure.
NO
- Fault is intermittent caused by poor contact in the sensor's and/or MFSW's connector or was repaired and MFSW memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- Scantool Data Analysis
- IG "ON" & ENG "OFF"
- After connect GDS, select "Current Date" menu.

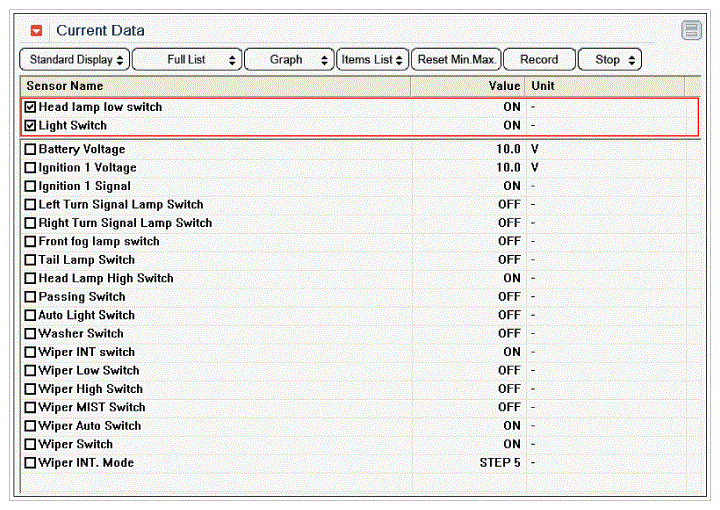

- Check whether "Light Switch" is turned to "ON" when the light switch is turned on.
Specification: Service data is switched. (ON ↔ OFF)
- Is the service data normal?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Go to "TERMINAL AND CONNECTOR INSPECTION " procedure.
