Signal Waveform & Data

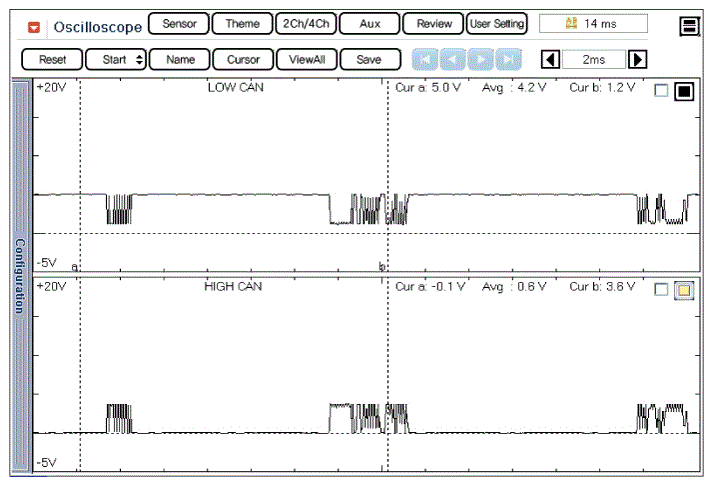

Fig 1: Display - CAN Low/High Signal Waveform
G08826095Courtesy of HYUNDAI MOTOR AMERICA

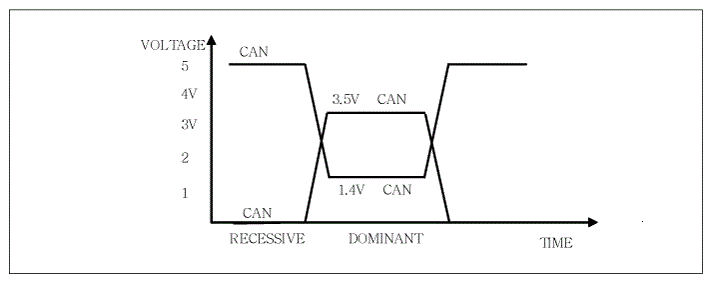

Fig 2: Display - CAN Bus Voltage Level (Low Speed CAN)
G08826096Courtesy of HYUNDAI MOTOR AMERICA
