Signal Waveform & Data

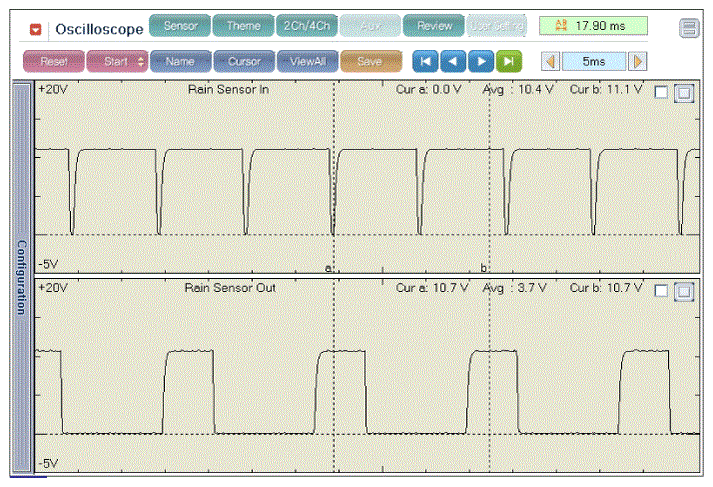

Fig 1: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Switch (AUTO Off)

Courtesy of HYUNDAI MOTOR AMERICA

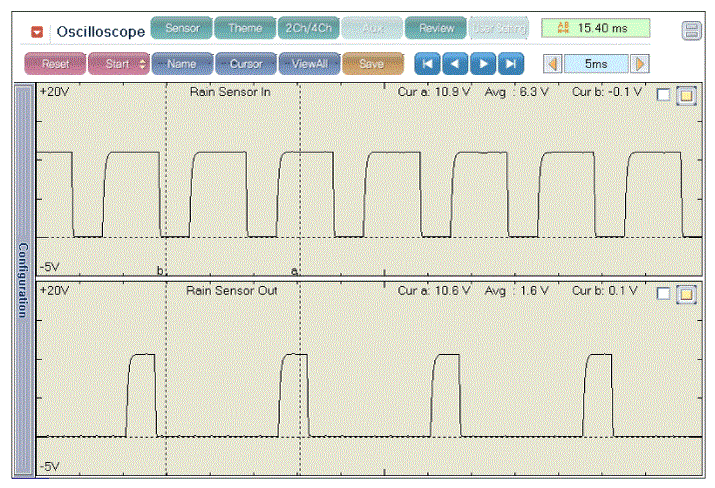

Fig 2: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Switch (AUTO ON-Low)

Courtesy of HYUNDAI MOTOR AMERICA

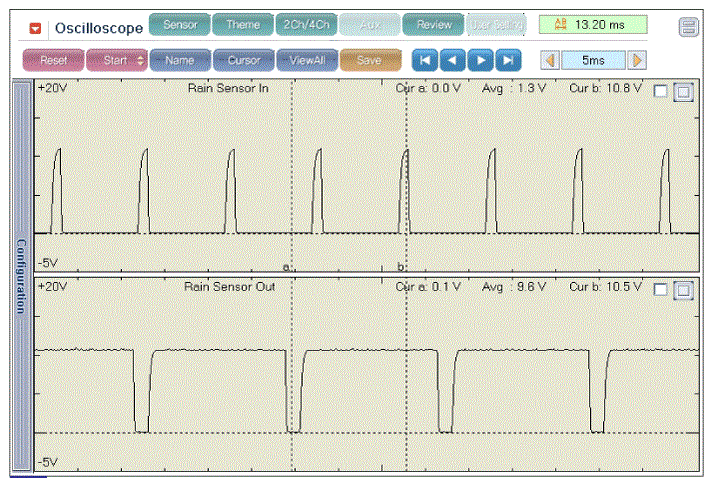

Fig 3: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Interior Switch ON (Auto Fast)

Courtesy of HYUNDAI MOTOR AMERICA

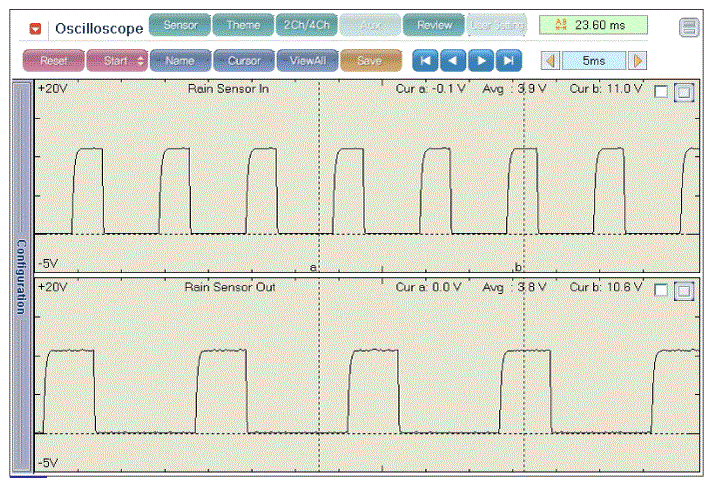

Fig 4: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Interior Switch ON (Auto Low-Drizzling Rain)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 5: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Interior Switch ON (Auto Low-Heavy Rain)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 6: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Interior Switch ON (Auto Fast-Drizzling Rain)

Courtesy of HYUNDAI MOTOR AMERICA

Fig 7: Display - Rain Sensor Input And Output Signal Waveform At Wiper AUTO Interior Switch ON (AUTO Fast-Heavy Rain)

Courtesy of HYUNDAI MOTOR AMERICA

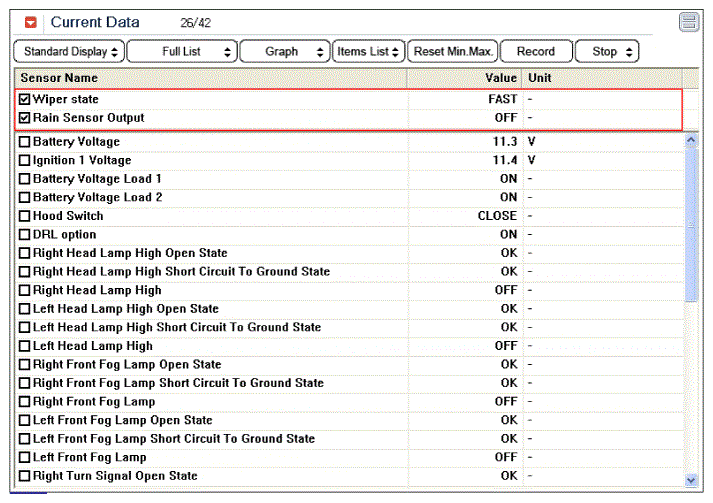

Fig 8: Display - Wiper State & Rain Sensor Output Current Data (With Wiper Switch AUTO & Engine Running)

Courtesy of HYUNDAI MOTOR AMERICA
