Circuit Diagram

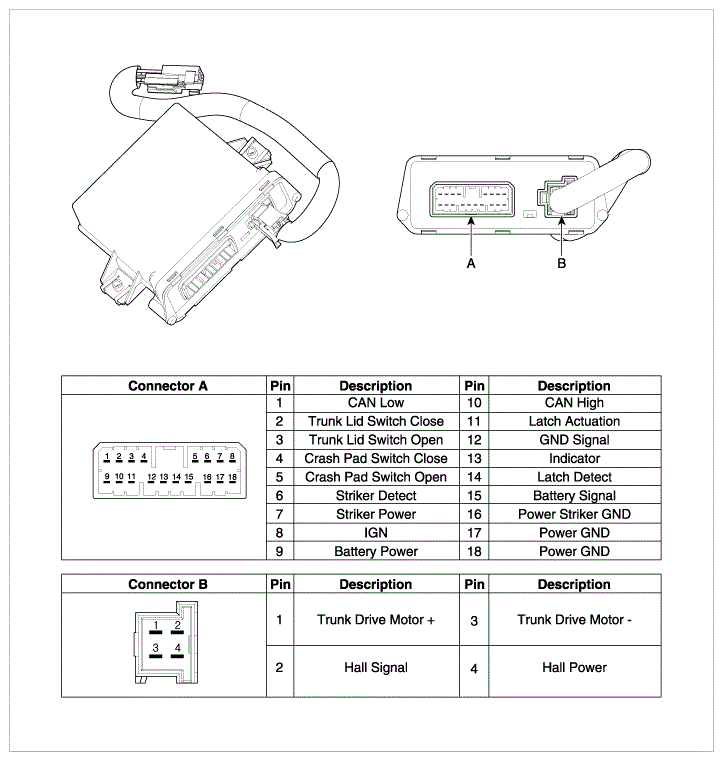

Fig 1: Identifying Power Trunk Module Drive Unit Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
