Connector End Views (Floor Harness)
>>
Connector End Views
>>
ECS Control Module Connector End View (F01-B)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
ECS Control Module Connector End View (F01-B)

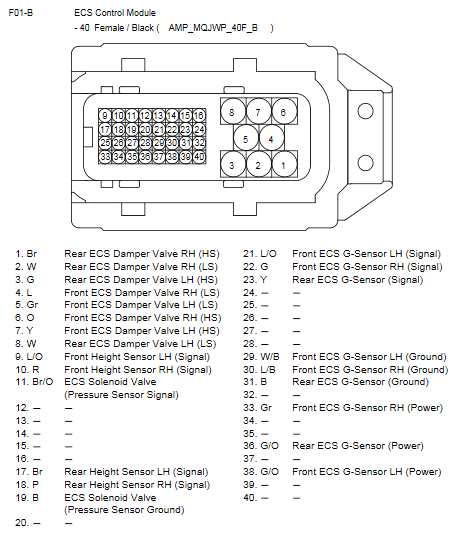

Fig 1: ECS Control Module Connector End View (F01-B)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
