Media Jack Module Connector End View (M85)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Media Jack Module Connector End View (M85)

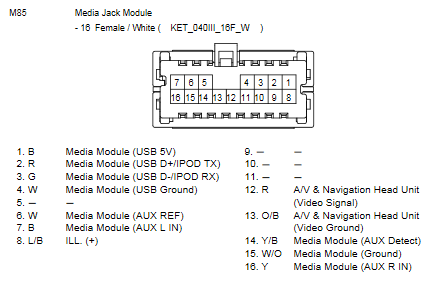

Fig 1: Media Jack Module Connector End View (M85)
