Electronic Control Wiper Module Connector End View (E14)

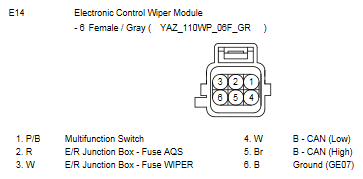

Fig 1: Electronic Control Wiper Module Connector End View (E14)
G10733983Courtesy of HYUNDAI MOTOR AMERICA
