A/C Control Module Connector End View (M07-C)

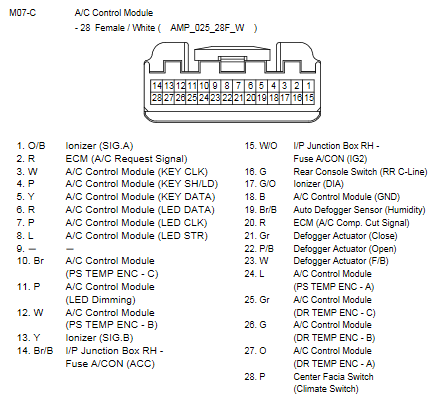

Fig 1: A/C Control Module Connector End View (M07-C)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
