Circuit Diagram

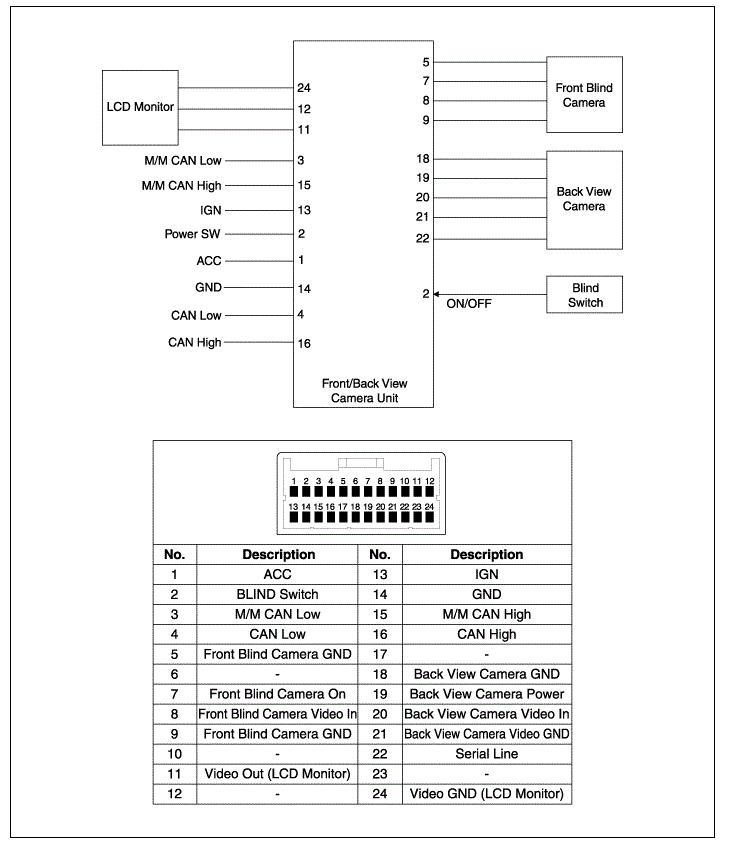

Fig 1: Front Back View Camera System - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
