Front To Front End Module (Harness Connection) Connector End View (EE21)

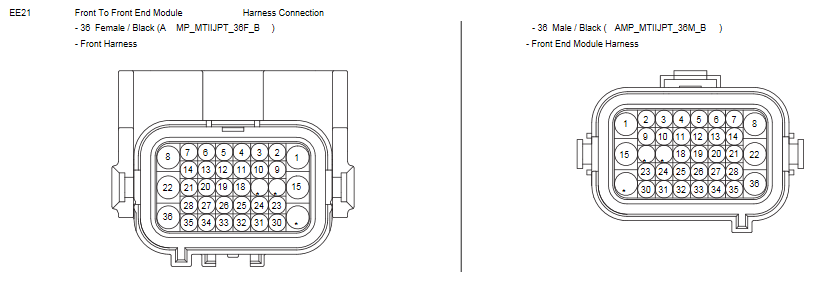

Fig 1: Front To Front End Module (Harness Connection) Connector End View (EE21)
G10734346Courtesy of HYUNDAI MOTOR AMERICA
