Engine Control System Diagnosis (1 Of 2) - 5.0L
>>
DTC P0153: O2 Sensor Circuit Slow Response (Bank 2/Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

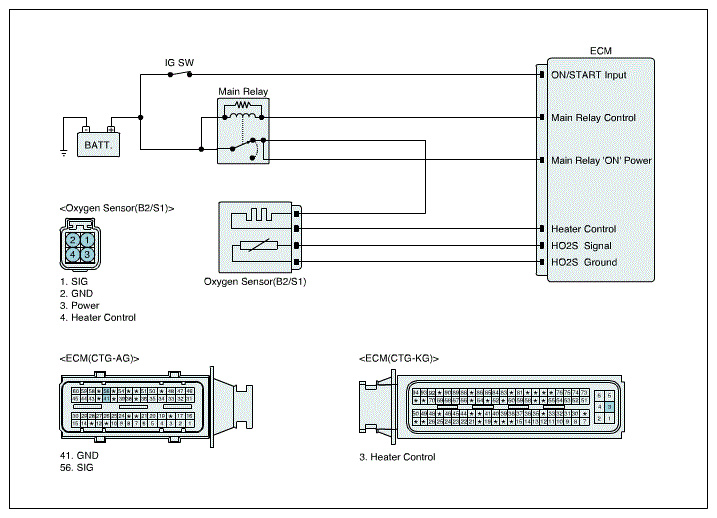

Fig 1: Oxygen Sensor - Circuit Diagram (Bank 2/Sensor 1)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
