Signal Waveform & Data

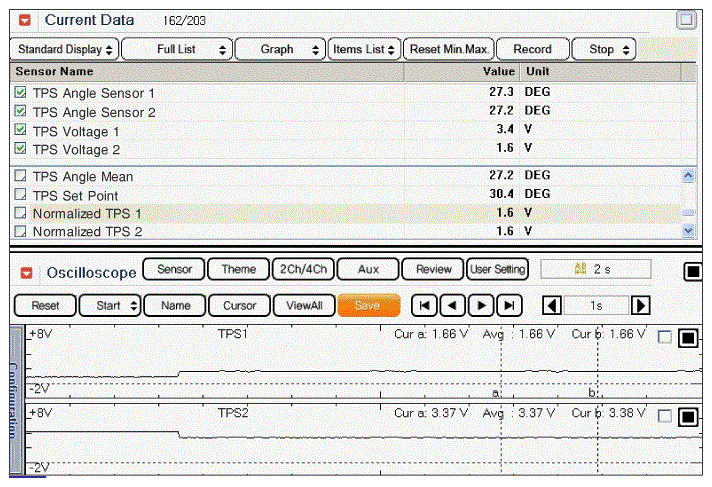

Fig 1: Display - Normal Data And Waveform Of TPS1 And TPS2 With Depressing Accelerator Pedal

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Display - Normal Data And Waveform Of TPS1 And TPS2 With Pressing Accelerator Pedal

Courtesy of HYUNDAI MOTOR AMERICA

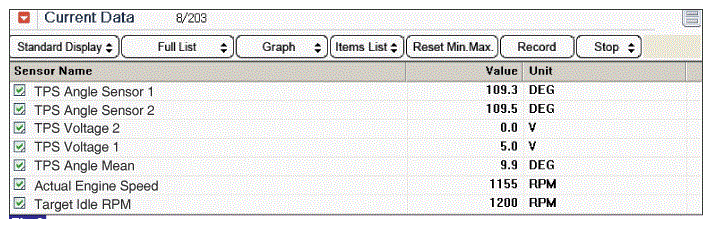

Fig 3: Display - Abnormal Data Of TPS1 And TPS2 With Connector Disconnected Condition

Courtesy of HYUNDAI MOTOR AMERICA

Normal data and waveform of TPS1 & TPS2 with depressing accel. pedal. Refer to Fig 1.

Normal data and waveform of TPS1 & TPS2 with pressing accel. pedal. Refer to Fig 2.

Abnormal data of TPS1 & TPS2 with connector disconnected condition . Refer to Fig 3.
