Diagnostic Circuit Diagram

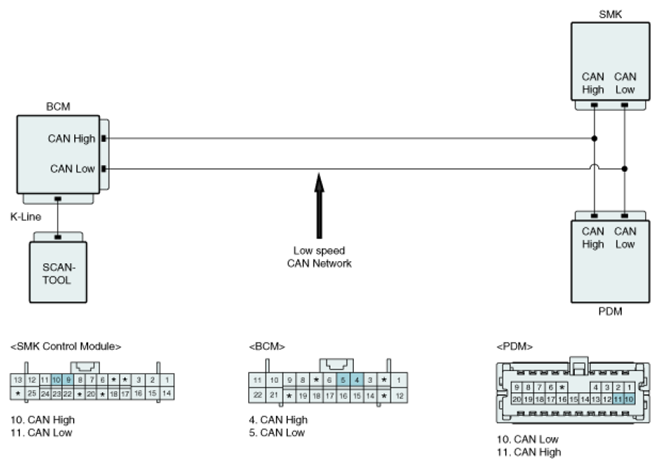

Fig 1: CAN Diagnostic Circuit Diagram
G06510265Courtesy of HYUNDAI MOTOR CO.
