Components Location

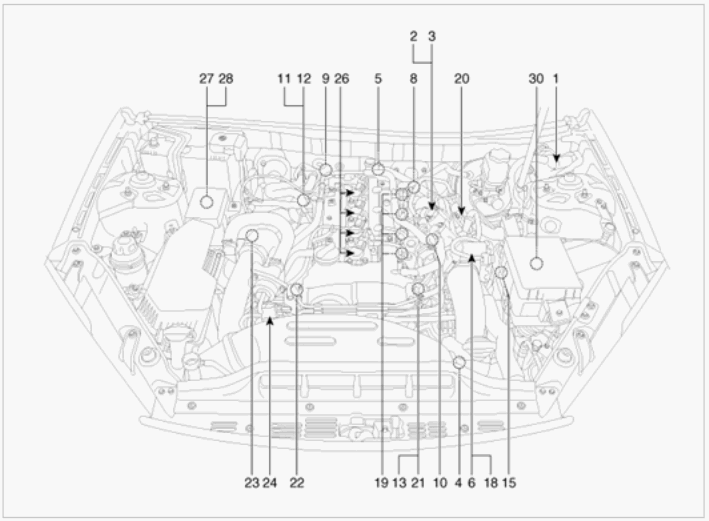

Fig 1: Locating Engine Control System Components (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

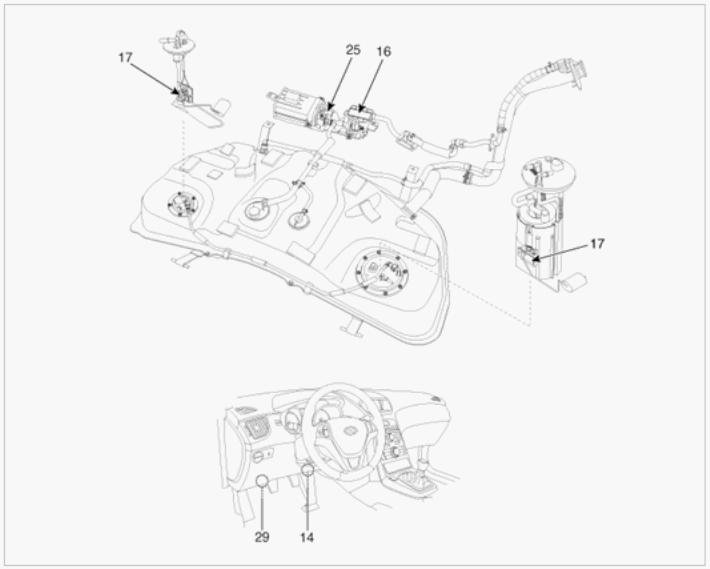

Fig 2: Locating Engine Control System Components (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

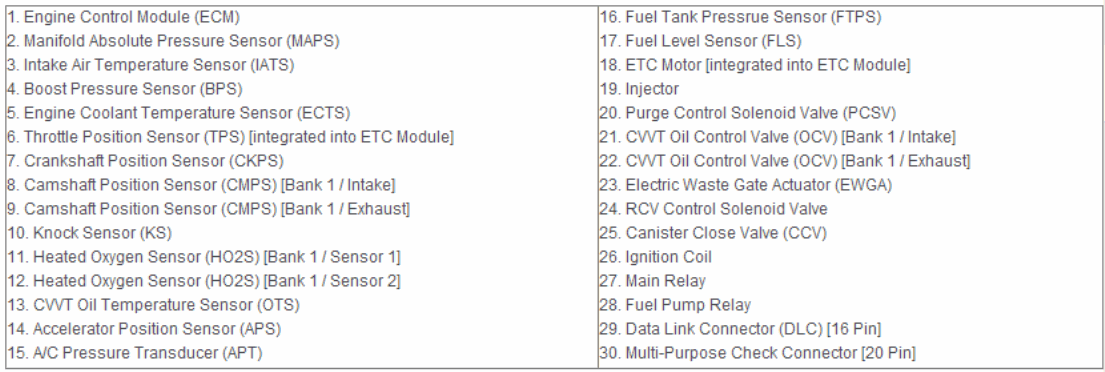

Fig 3: Callouts For Engine Control System Components

Courtesy of HYUNDAI MOTOR CO.

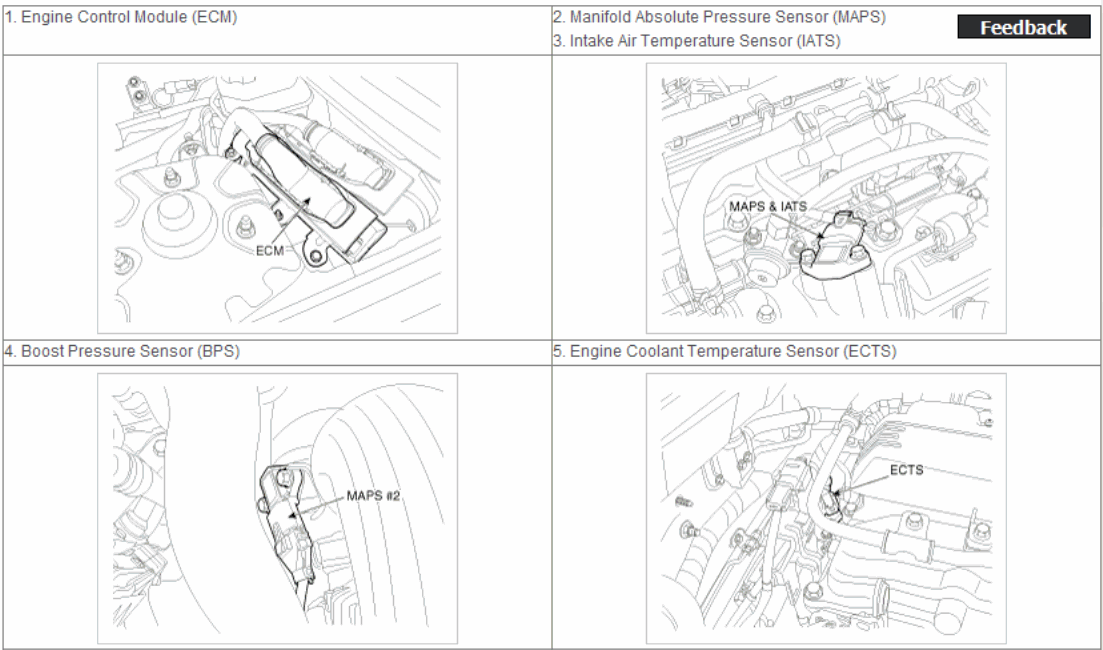

Fig 4: Identifying Engine Control System Components (1 Of 6)

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Engine Control System Components (2 Of 6)

Courtesy of HYUNDAI MOTOR CO.

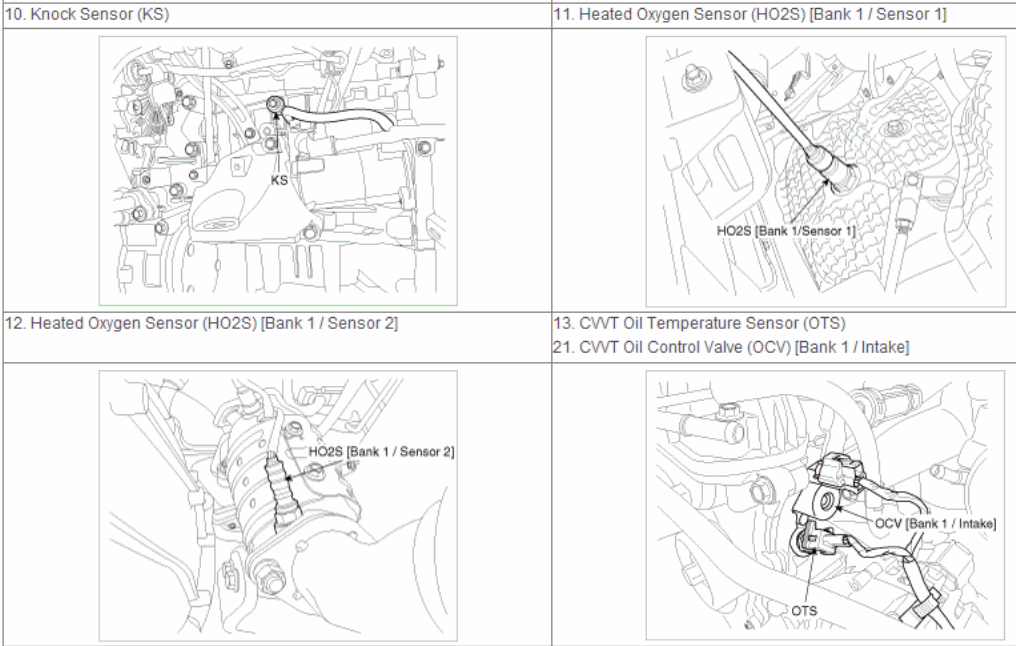

Fig 6: Identifying Engine Control System Components (3 Of 6)

Courtesy of HYUNDAI MOTOR CO.

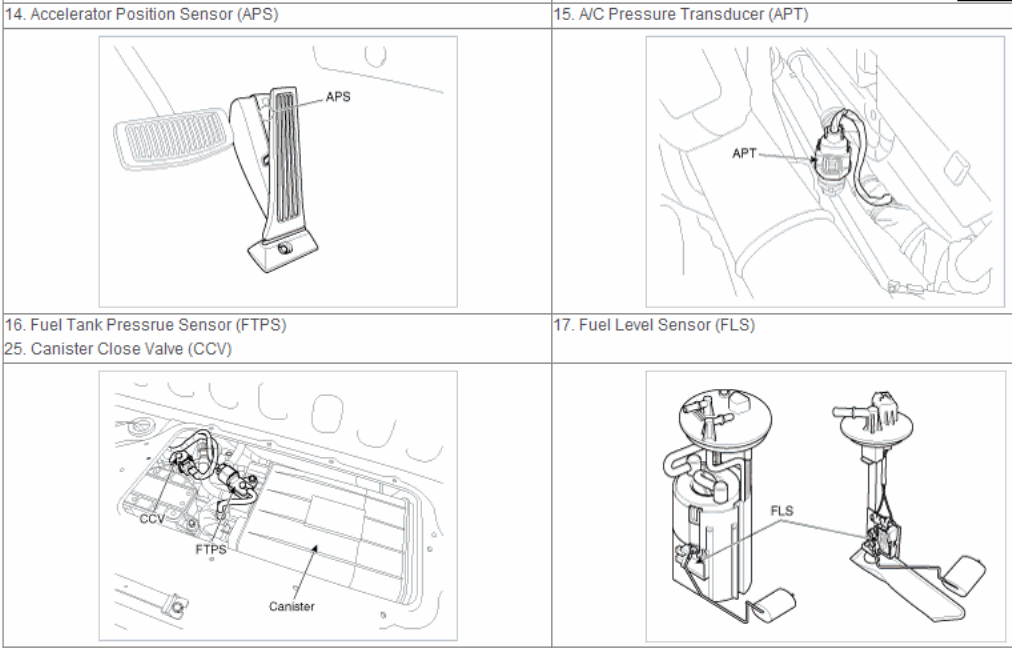

Fig 7: Identifying Engine Control System Components (4 Of 6)

Courtesy of HYUNDAI MOTOR CO.

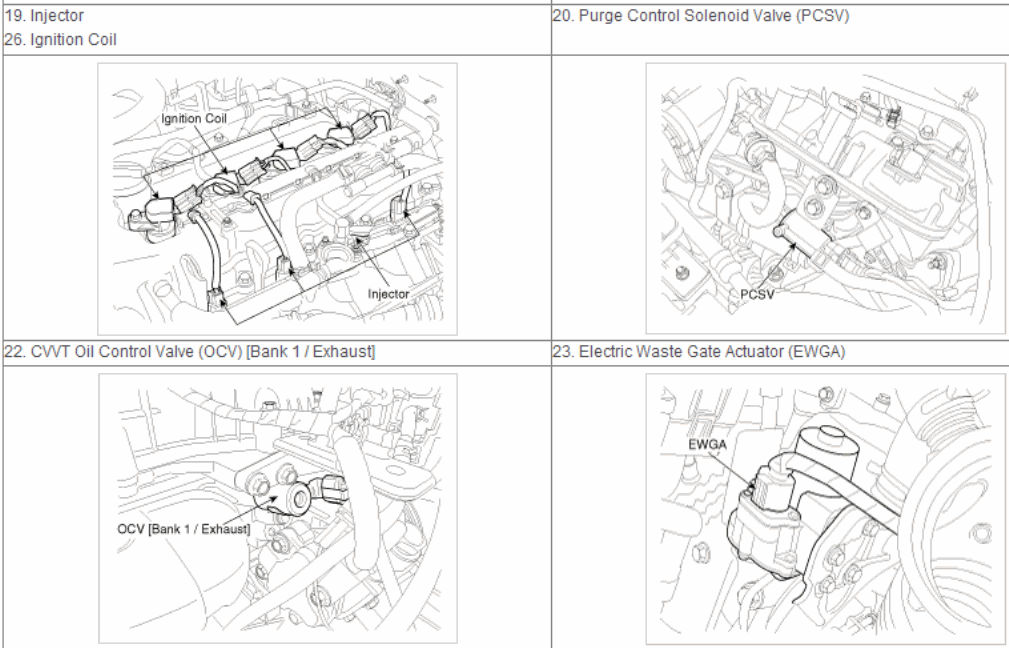

Fig 8: Identifying Engine Control System Components (5 Of 6)

Courtesy of HYUNDAI MOTOR CO.

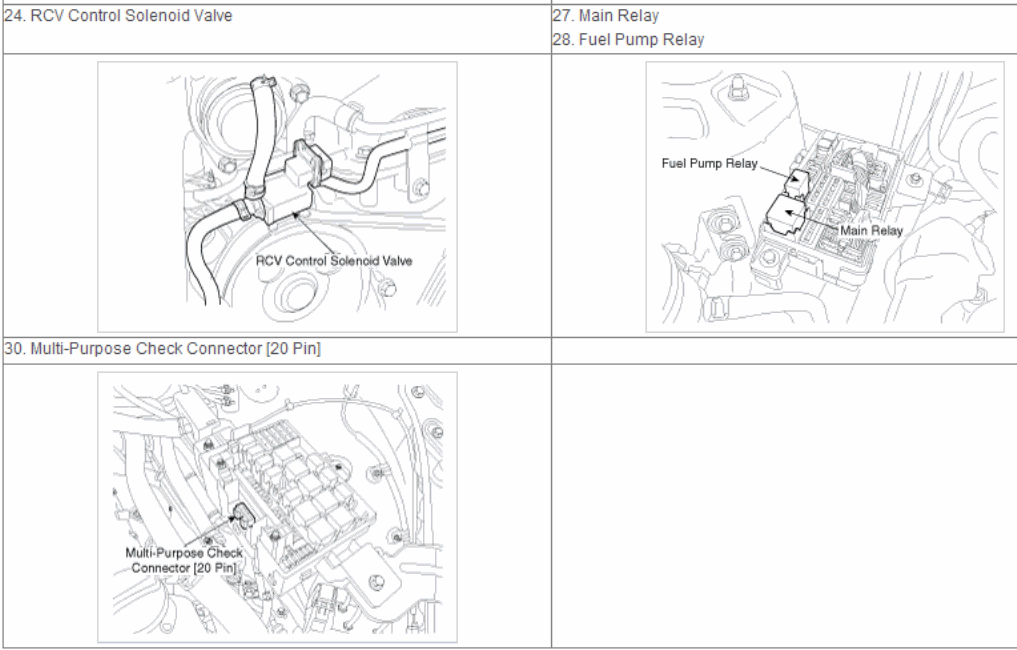

Fig 9: Identifying Engine Control System Components (6 Of 6)

Courtesy of HYUNDAI MOTOR CO.
