Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the RCV control solenoid valve connector (A) and hose (B).

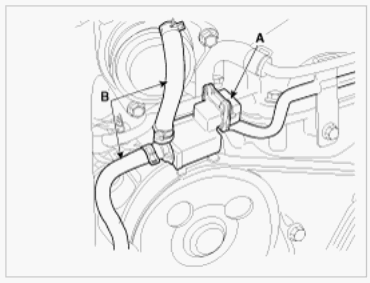

    Fig 1: Identifying RCV Control Solenoid Valve Connector & Hose
    G00541013Courtesy of HYUNDAI MOTOR CO.
  3. Remove the RCV control solenoid valve bracket after remove the bracket installation bolts (A).

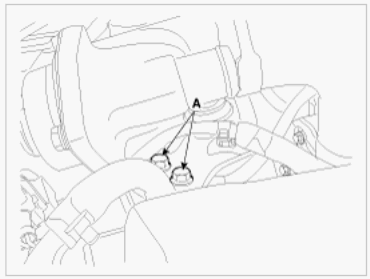

    Fig 2: Identifying RCV Control Solenoid Valve Bracket Bolts
    G00541014Courtesy of HYUNDAI MOTOR CO.

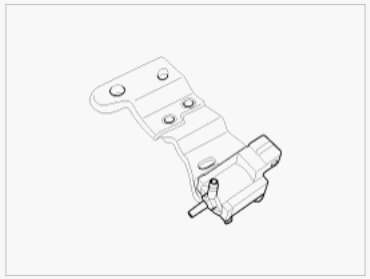

    Fig 3: RCV Control Solenoid Valve
    G00541012Courtesy of HYUNDAI MOTOR CO.
