Repair Procedures: Installation

  1. Installation is the reverse of removal.

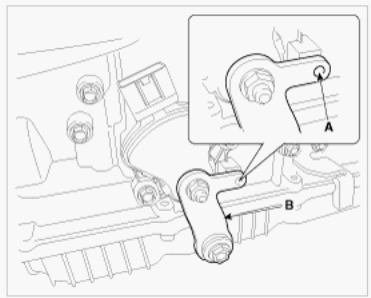

    NOTE: Assemble the control lever (B) after seeing hole (A) aligning.
    Fig 1: Identifying Control Lever And Hole
    G00540589Courtesy of HYUNDAI MOTOR AMERICA

    *Install the shift cable after adjusting the FREE PLAY of cable.
