How To Adjust Shift Cable
- Set room side Shift lever and T/M side manual control lever to N position.
- Insert the shift cable to the bracket and hold it with a new clip.

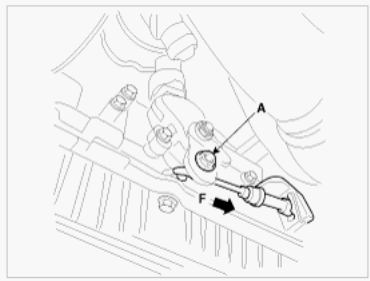

- Push cable to "F" direction shown to eliminate FREE PLAY.
- Firmly hold the special bolt with a spanner and tighten the nut with the specified torque.
Tightening torque:
13.7 ~ 17.7 N.m (1.4 ~ 1.8 kgf.m, 10.1 ~ 13.0 lb-ft)
