Repair Procedures: Removal

Disconnect (-) terminal from the battery.
Loosen the nut (B) and then remove the shift cable (C) by removing the clip (A).

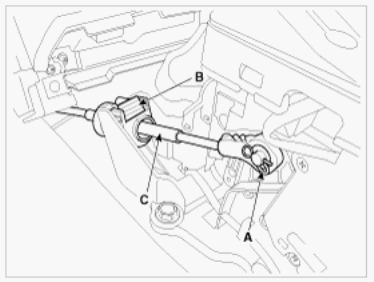

Fig 1: Identifying Shift Cable, Nut & Clip
Courtesy of HYUNDAI MOTOR AMERICA

NOTE: Do not reuse the clip (A).
Remove the console assembly. (Refer to "CONSOLE ")
Take off the clip (A) and remove the shift cable assembly (C) by pressing the guide (B).

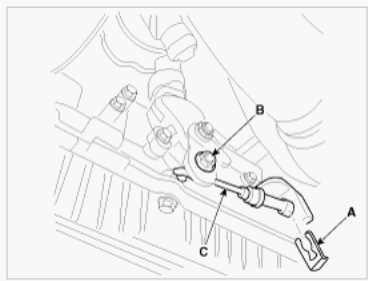

Fig 2: Identifying Shift Cable Assembly, Guide & Clip
Courtesy of HYUNDAI MOTOR AMERICA
Remove the retainer (A).

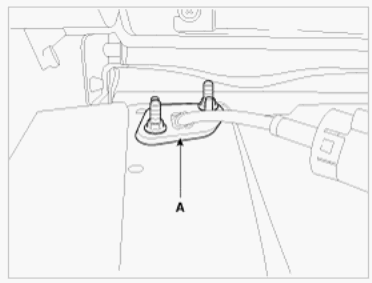

Fig 3: Identifying Retainer
Courtesy of HYUNDAI MOTOR AMERICA
