Components and Component Locations: Components

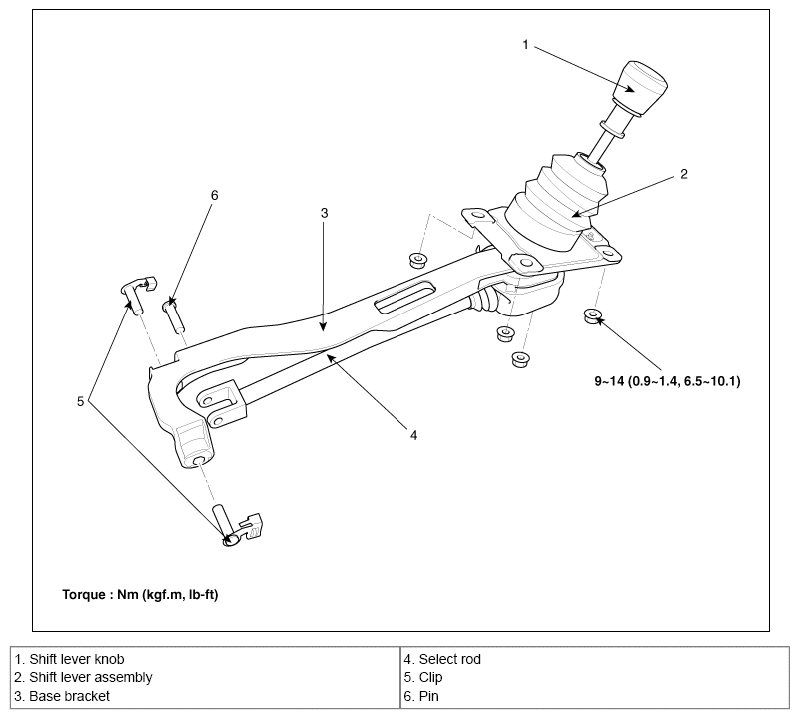

Fig 1: Shift Lever Replacement Components With Torque Specifications
G06514246Courtesy of HYUNDAI MOTOR CO.
