Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the accelerator pedal in the direction of "Removal direction" in the figure after removing the installation bolt (B).

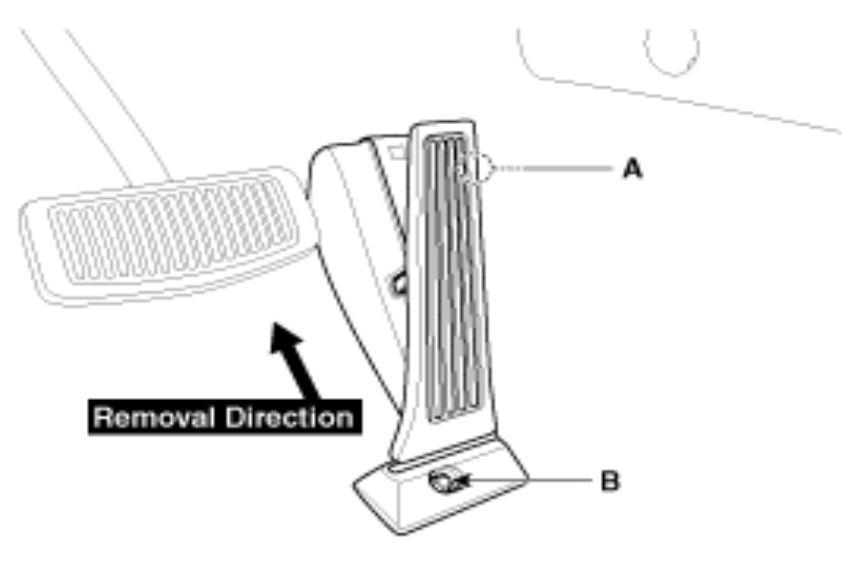

    Fig 1: Identifying Accelerator Position Sensor Connector & Installation Bolt
    G00540469Courtesy of HYUNDAI MOTOR CO.
