Repair Procedures: Removal

[CVVT Oil Control Valve (Intake)]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Remove the intake manifold (Refer to "INTAKE AND EXHAUST SYSTEM (ENGINE MECHANICAL) - 3.8L ").
3. Disconnect the CVVT oil control valve connector (A).
4. Remove the mounting bolt (B), and then remove the valve from the engine.

[Bank 1]

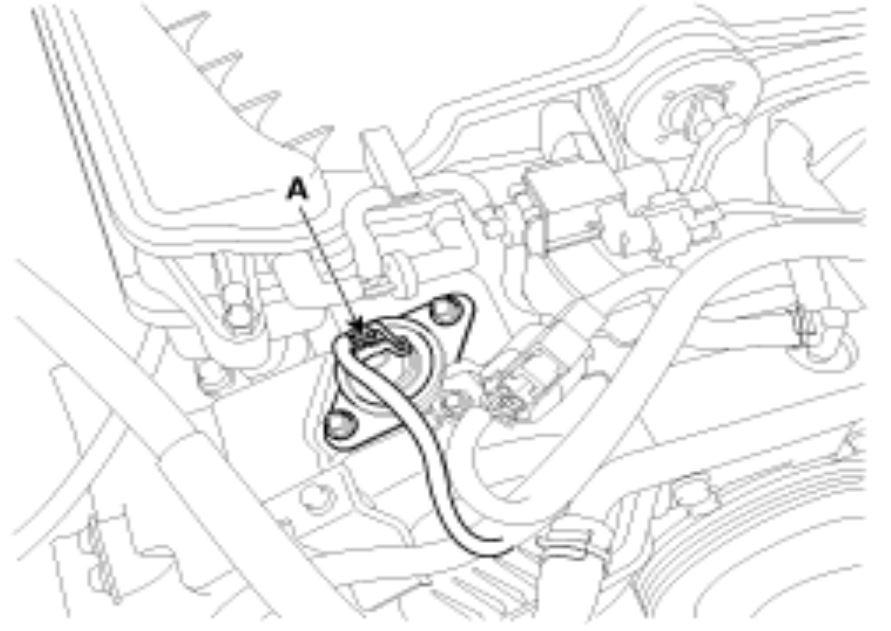

Fig 1: Identifying CVVT Oil Control Valve Connector & Mounting Bolt (Bank 1)

Courtesy of HYUNDAI MOTOR CO.

[Bank 2]

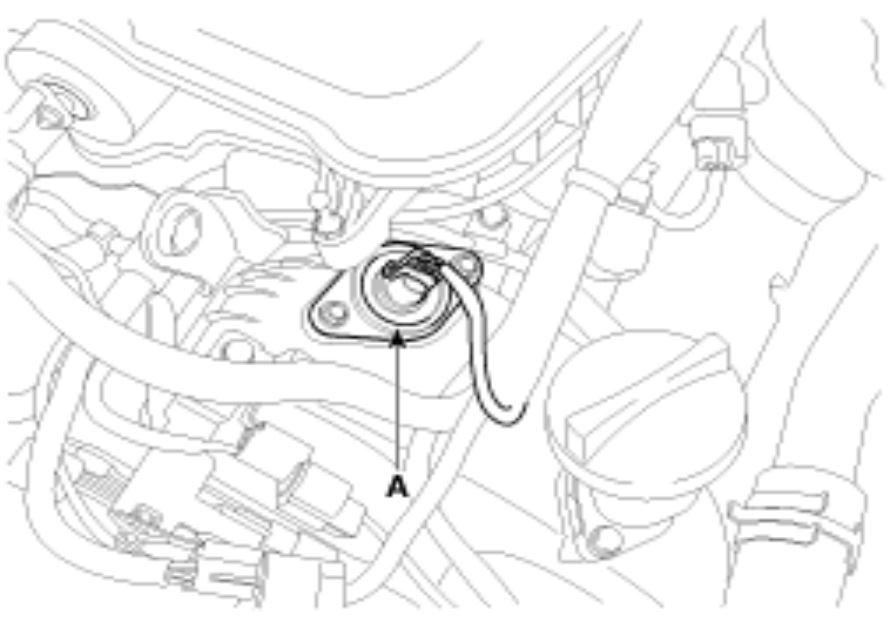

Fig 2: Identifying CVVT Oil Control Valve Connector & Mounting Bolt (Bank 2)

Courtesy of HYUNDAI MOTOR CO.

[CVVT Oil Control Valve (Exhaust)]

1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
2. Disconnect the CVVT oil control valve connector (A).

   [Bank 1]

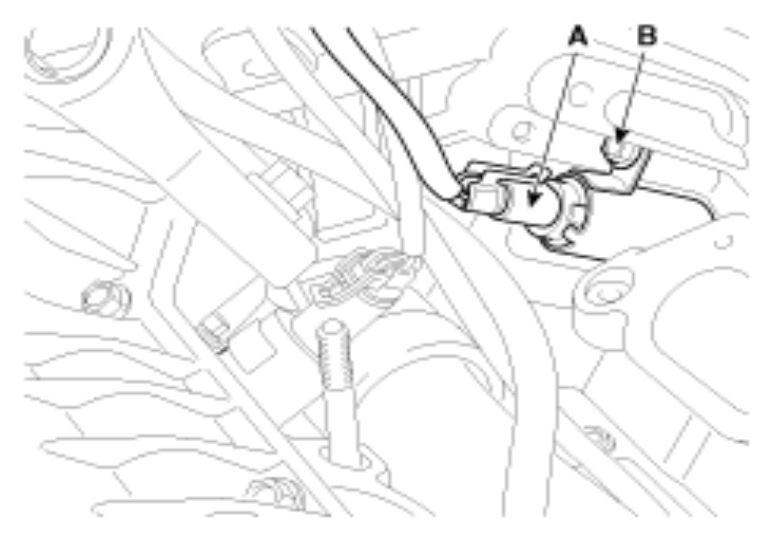

   Fig 3: Identifying Exhaust CVVT Oil Control Valve Connector [Bank 1]

   Courtesy of HYUNDAI MOTOR CO.

   [Bank 2]

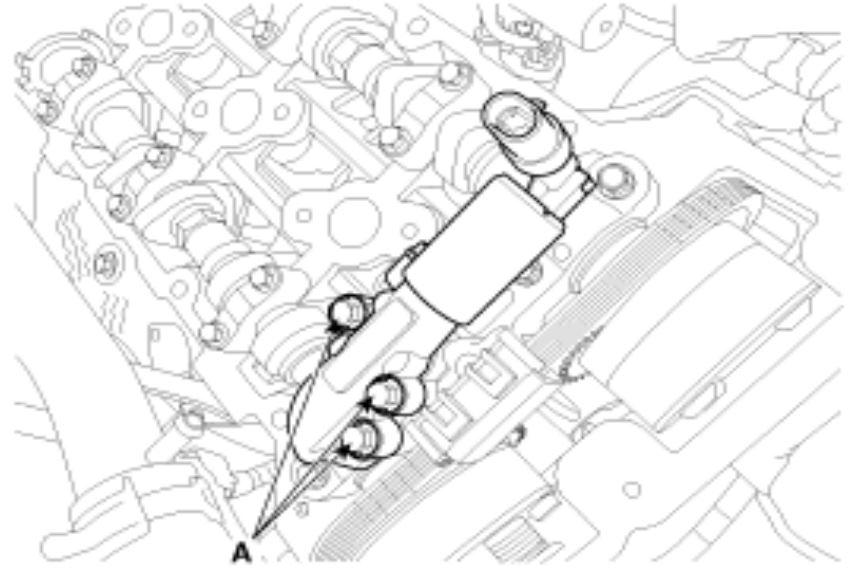

   Fig 4: Identifying Exhaust CVVT Oil Control Valve Connector [Bank 2]

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the cylinder head cover (Refer to CYLINDER HEAD ASSEMBLY (ENGINE MECHANICAL) - 3.8L ).
4. Remove the installation bolt (A), and then remove the valve from the engine.

   [Bank 1]

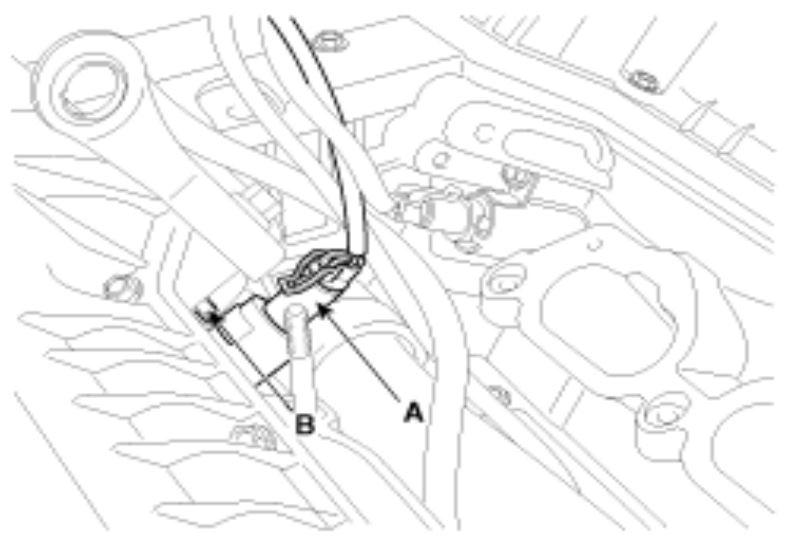

   Fig 5: Identifying Exhaust CVVT Oil Control Valve Mounting Bolt [Bank 1]

   Courtesy of HYUNDAI MOTOR CO.

   [Bank 2]

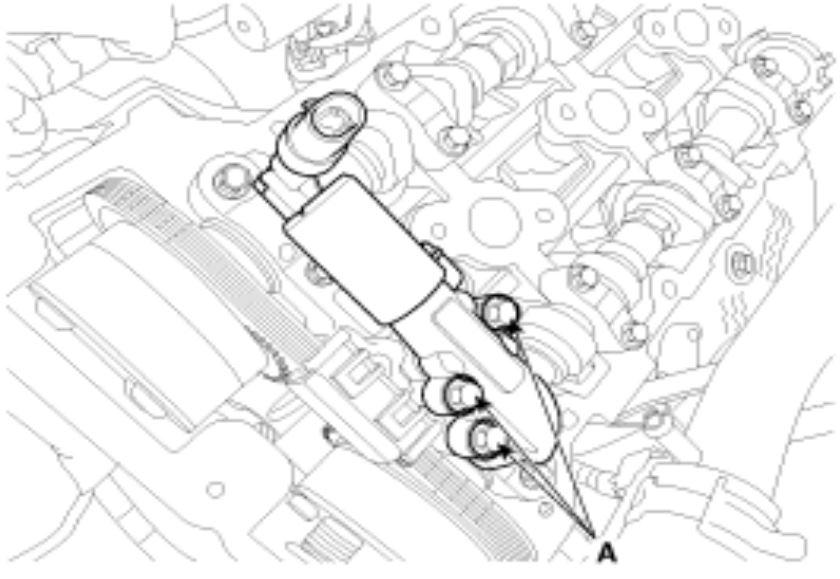

   Fig 6: Identifying Exhaust CVVT Oil Control Valve Mounting Bolt [Bank 2]

   Courtesy of HYUNDAI MOTOR CO.
