Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air cleaner assembly (Refer to INTAKE AND EXHAUST SYSTEM (ENGINE MECHANICAL) - 3.8L ).
  3. Disconnect the connector (A), and then remove the CVVT oil temperature sensor (B).

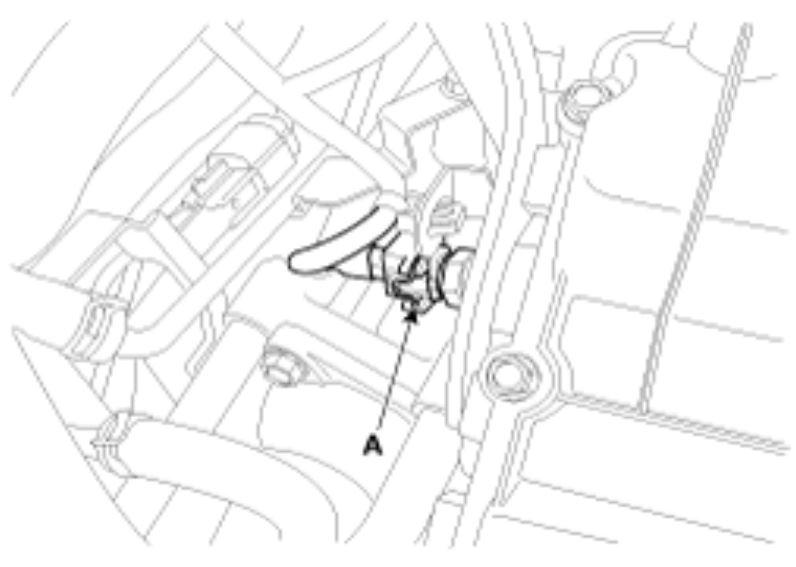

    Fig 1: Identifying Connector & CVVT Oil Temperature Sensor
    G00540467Courtesy of HYUNDAI MOTOR CO.
