Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the air intake hose (Refer to INTAKE AND EXHAUST SYSTEM (ENGINE MECHANICAL) - 3.8L ).
  3. Disconnect the ETC module connector (A).
    Fig 1: Identifying ETC Module Connector
    G00540423Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts, and then remove the ETC module (C) from the engine.

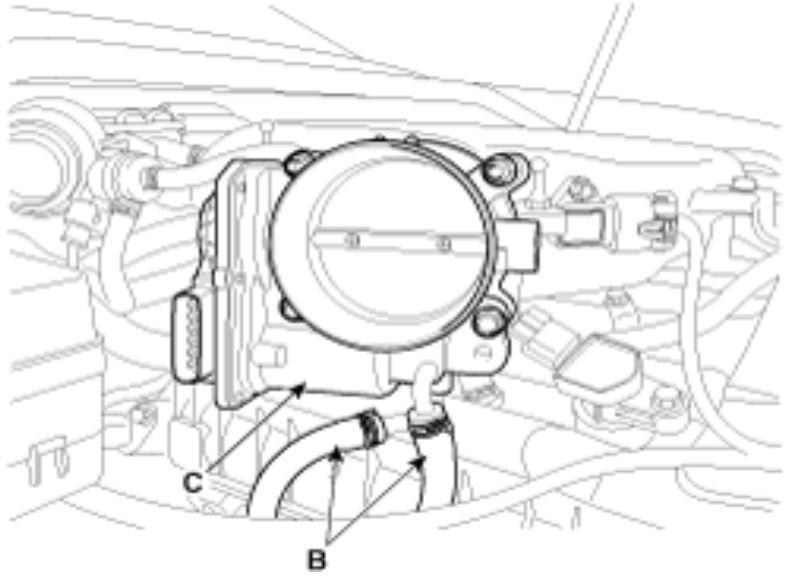

    Fig 2: Identifying Coolant Hoses & ETC Module
    G00540424Courtesy of HYUNDAI MOTOR CO.
