Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the floor mat in the trunk (Refer to Trunk Trim ).
  3. Remove the service cover (A).
    Fig 1: Identifying Service Cover
    G00540471Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the fuel tank pressure sensor connector (A).
  5. Remove the fuel tank pressure sensor after removing the installation bolt.

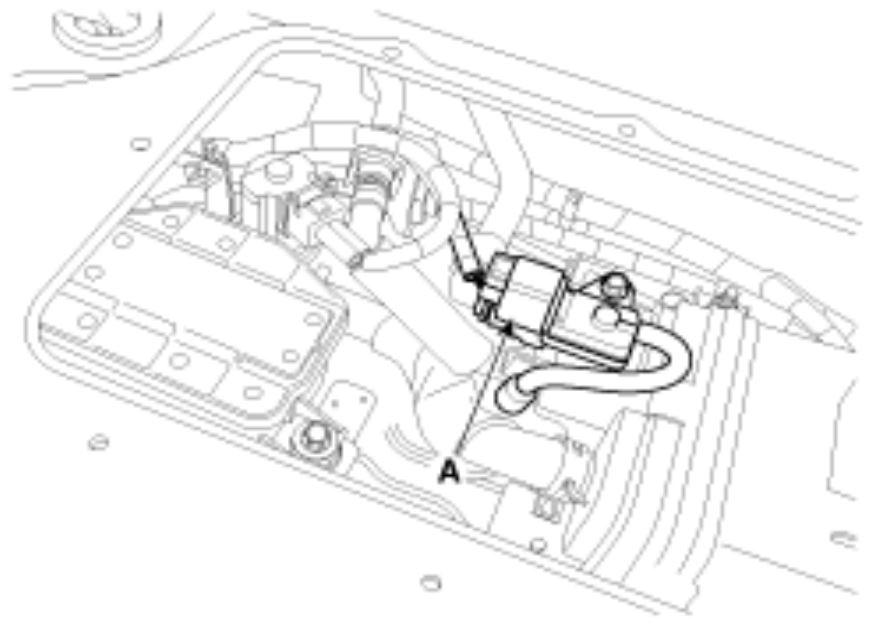

    Fig 2: Identifying Fuel Tank Pressure Sensor Connector
    G00540472Courtesy of HYUNDAI MOTOR CO.
