Rail Pressure Sensor (RPS): Specifications: Specifications

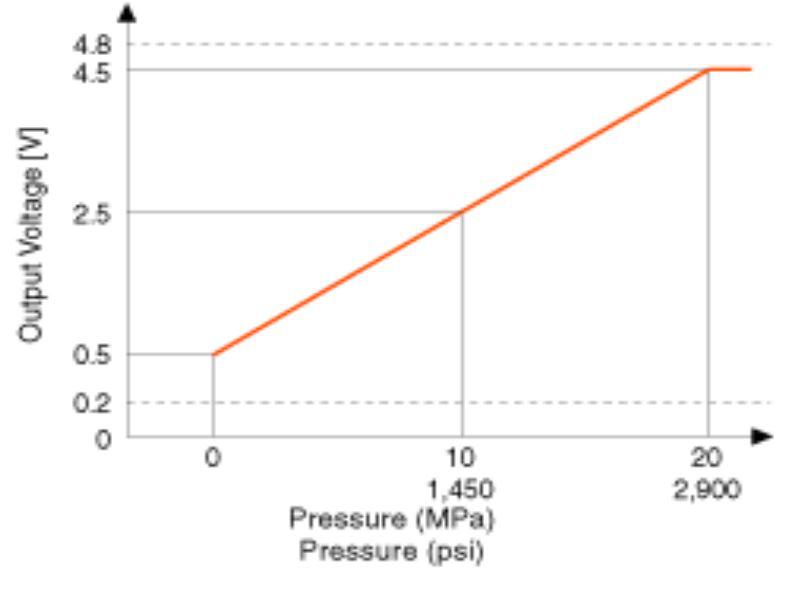

Fig 1: Rail Pressure Sensor (RPS) Output Voltage & Pressure
G00540462Courtesy of HYUNDAI MOTOR CO.
