Fuel Injector Control Module: Diagrams





IDB Terminal And Input/Output signal

IDB Harness Connector

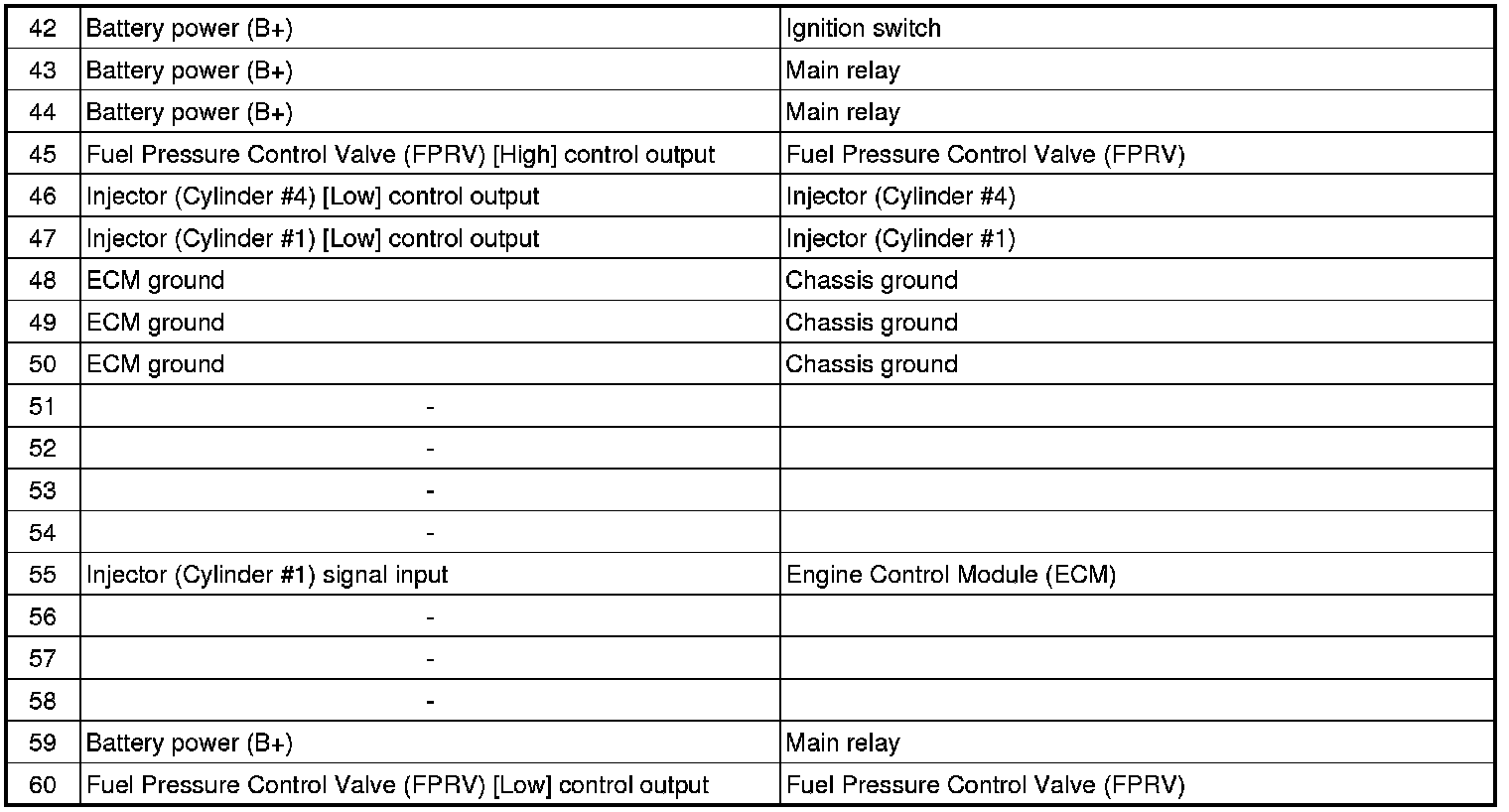

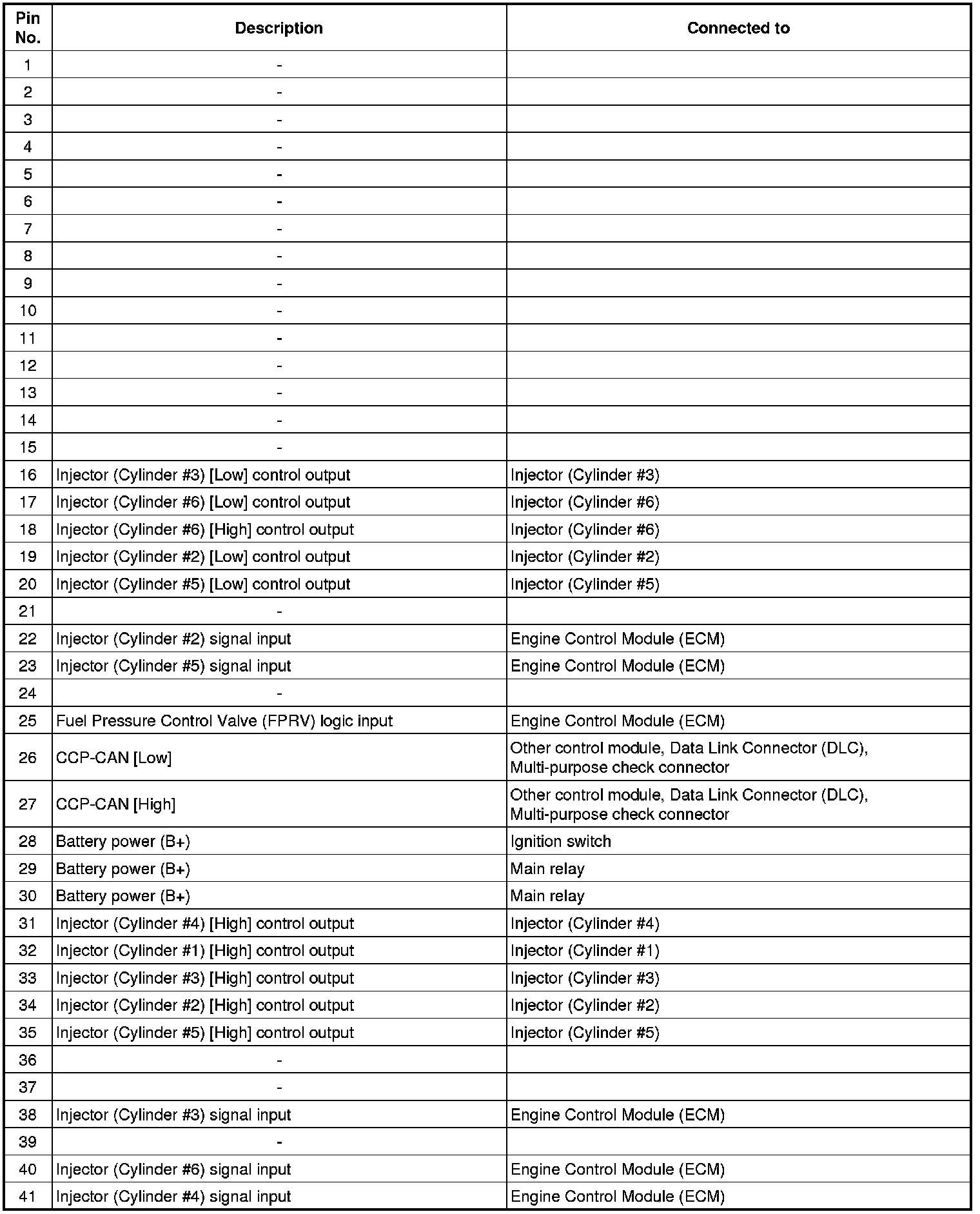

IDB Terminal Function

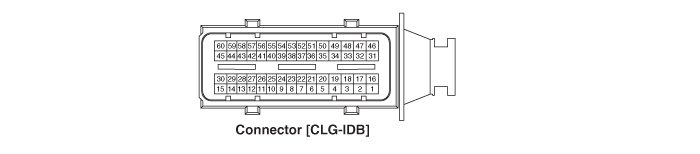

Connector [CLG-IDB]

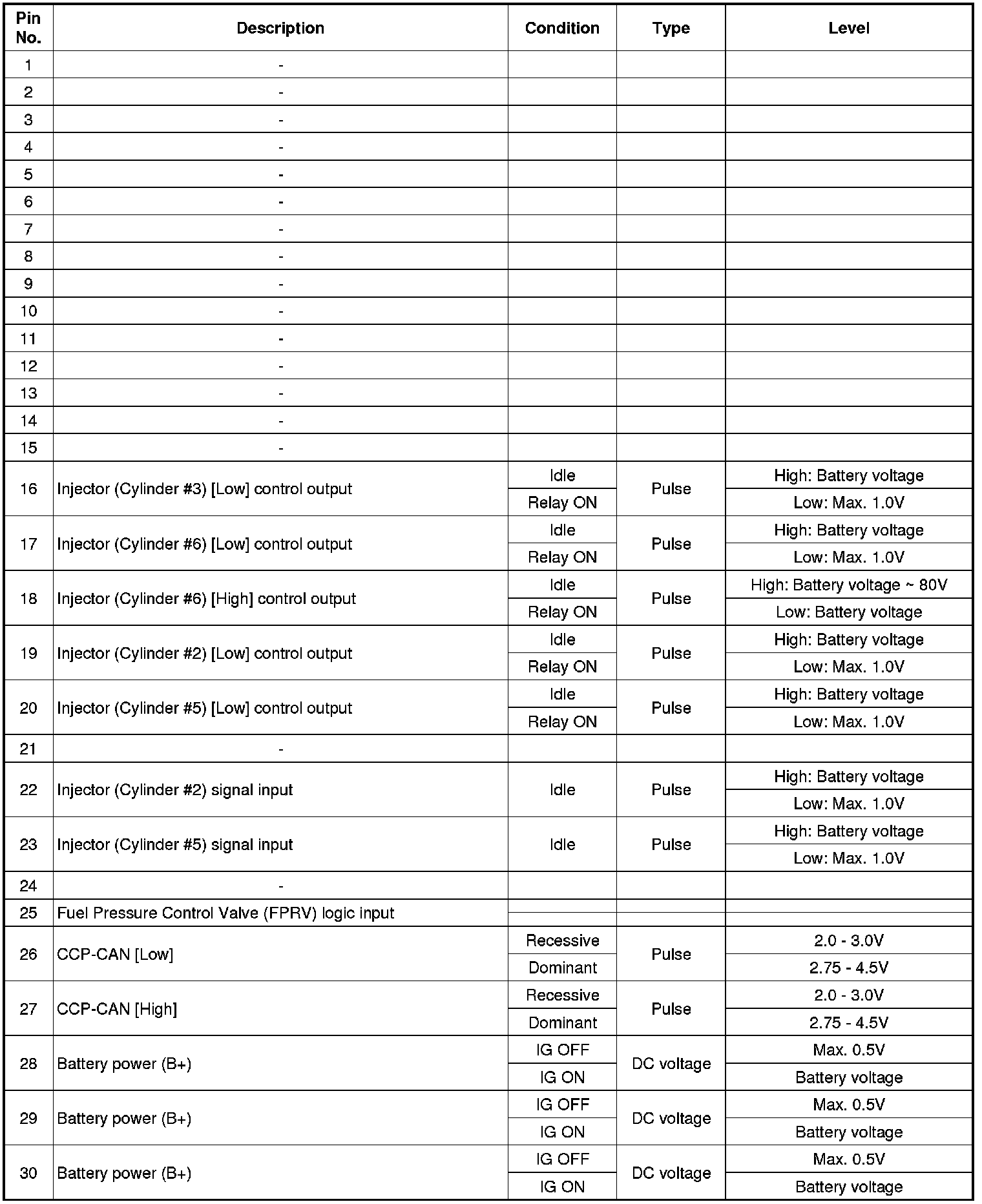

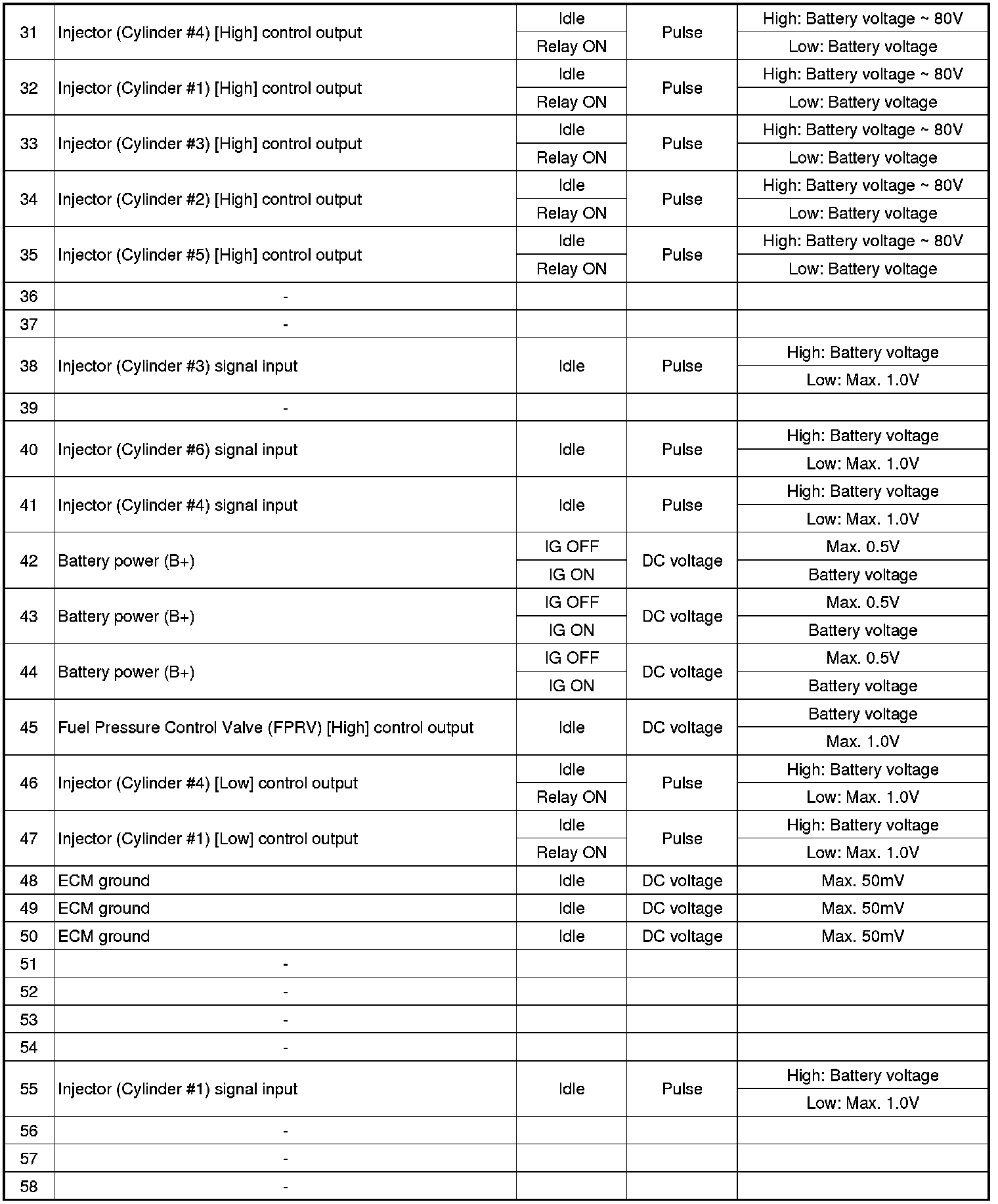

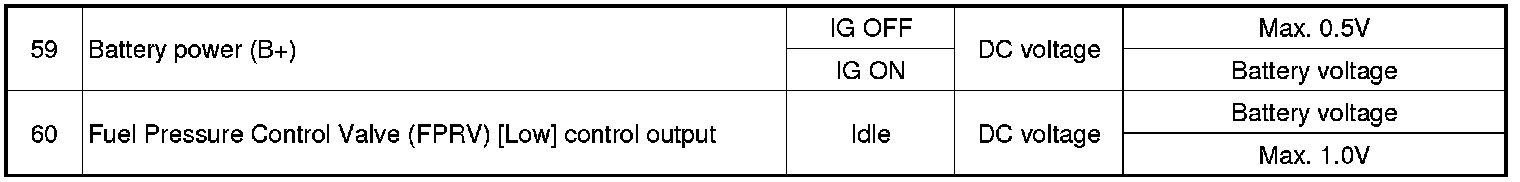

IDB Terminal Input/Output Signal
Connector [CLG-IDB]

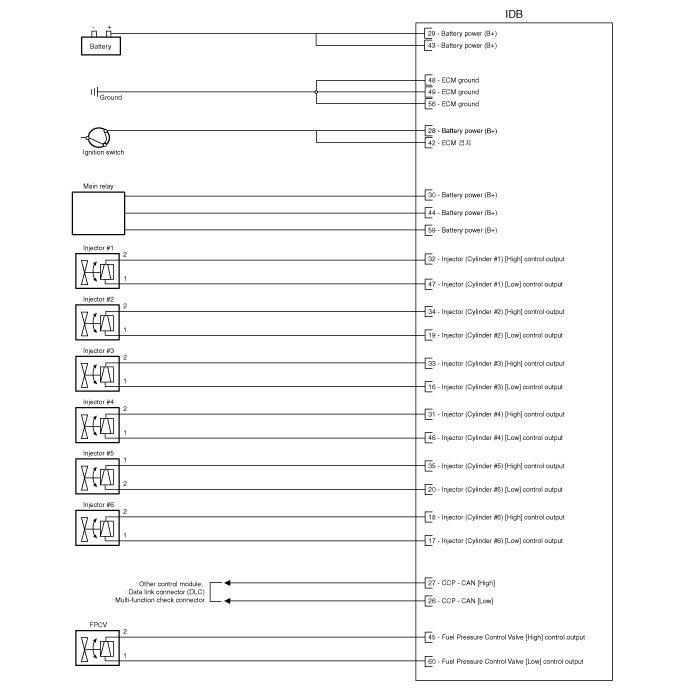

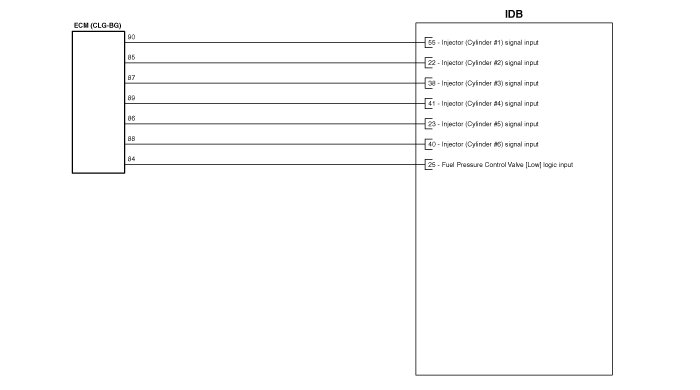

Circuit Diagram
