AVN (Audio Video Navigation) Head Unit

Removal

1. Disconnect the negative (-) battery terminal.

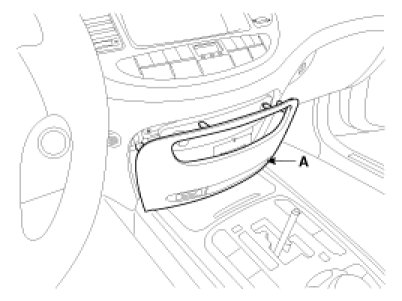

2. Remove the crash pad lower panel (A).

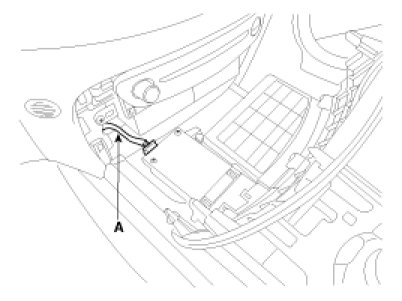

3. Remove the connector (A).

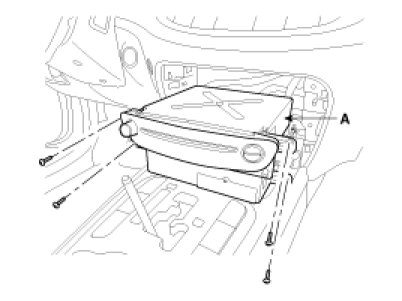

4. Remove the mounting screws and then remove the AVN head unit (A).

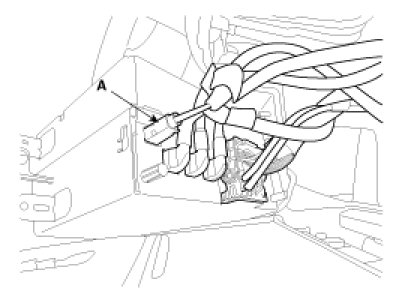

5. Remove the AVN head unit connectors (A).





CAUTION:
When the compact disc is not ejected, do not remove it forcibly.

Installation

1. Install the AVN head unit after connecting the connectors.
2. Install the crash pad lower panel.
3. Connect the negative (-) battery terminal.
