Fuel Injector Control Module: Diagrams





IDB terminal and Inoutput

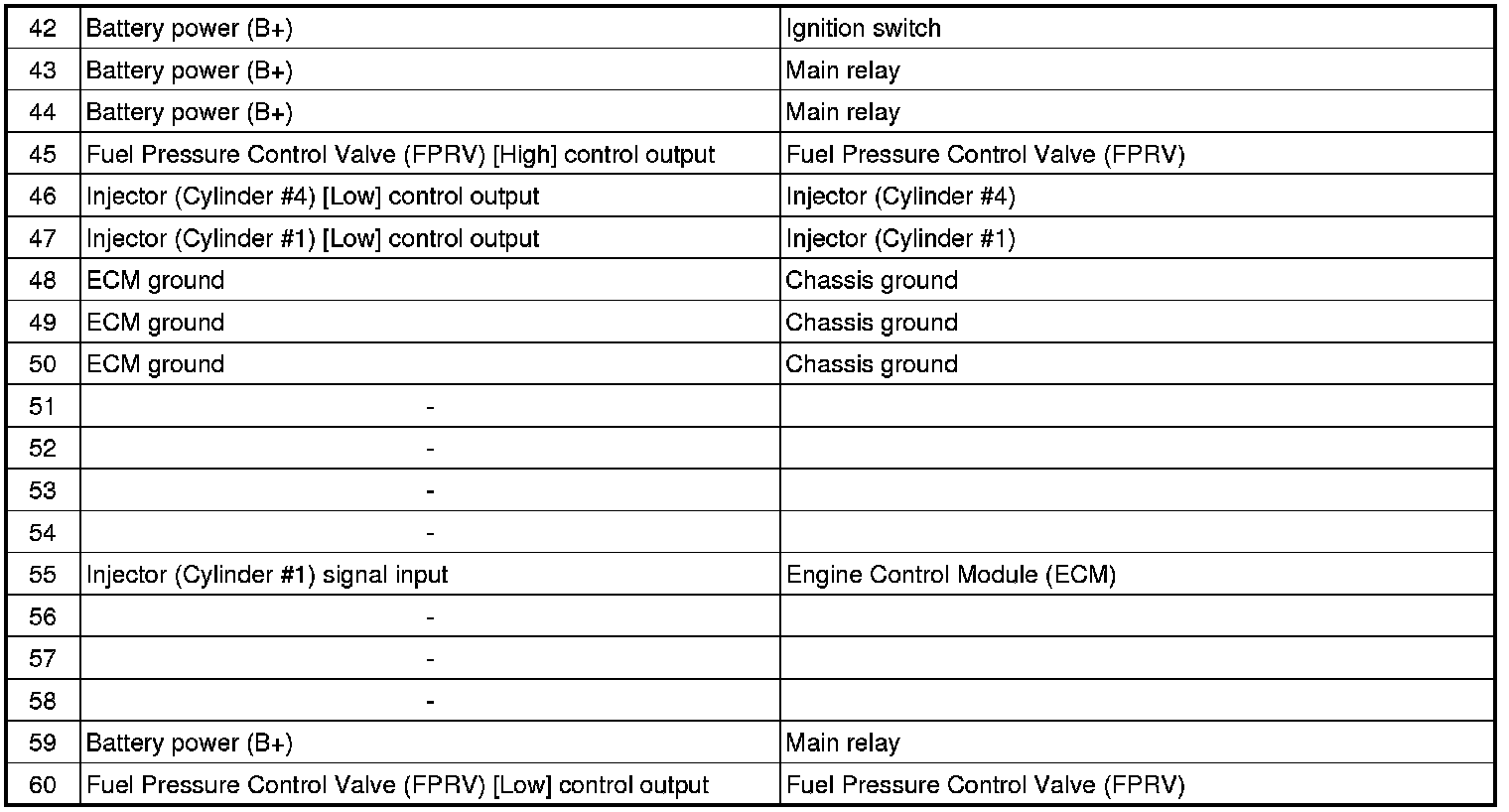

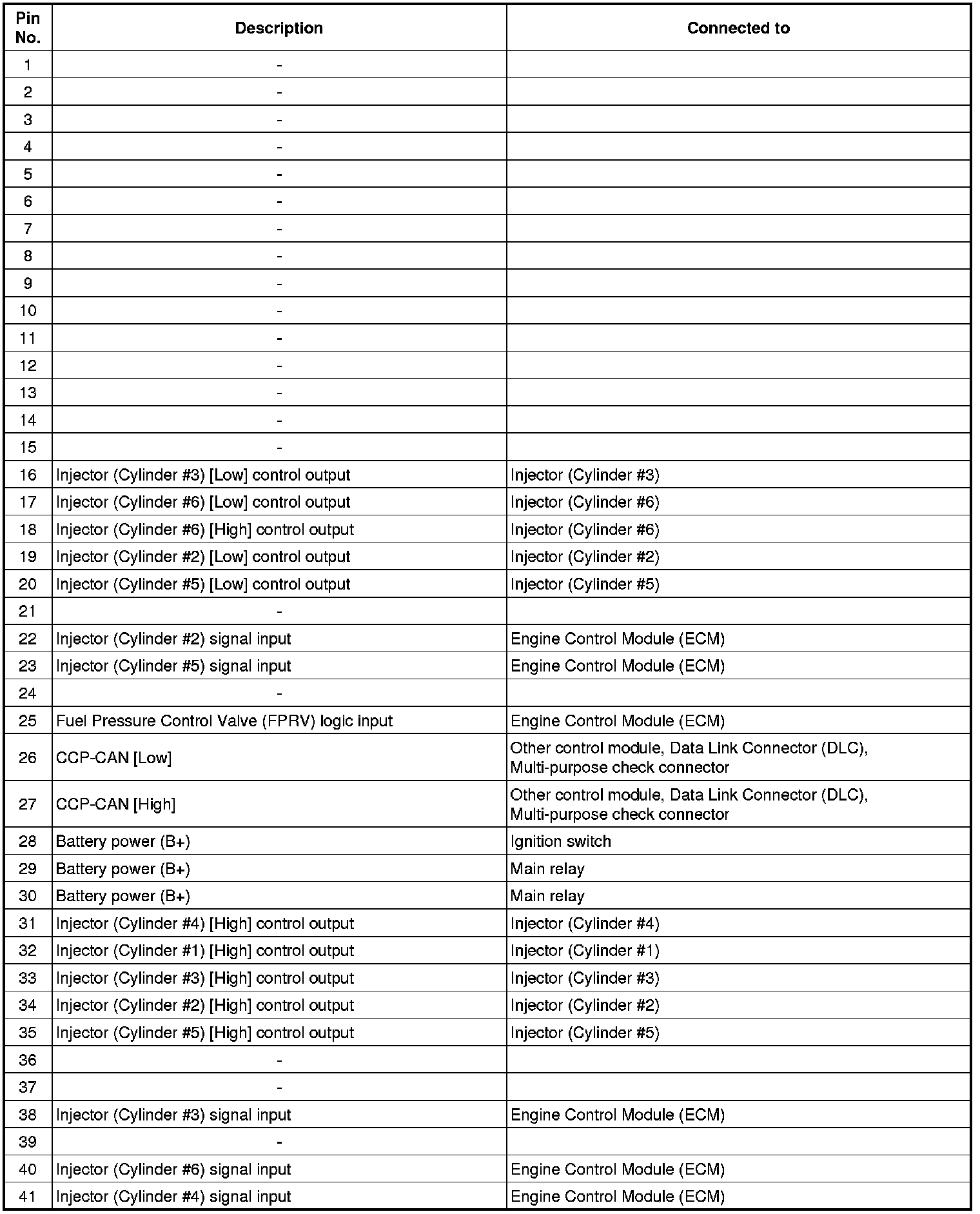

IDB terminal function

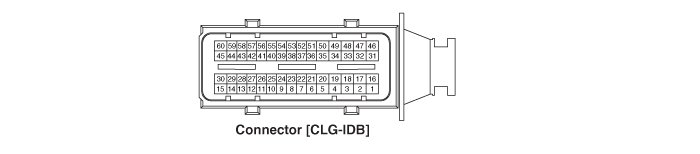

Connector [CLG-IDB]

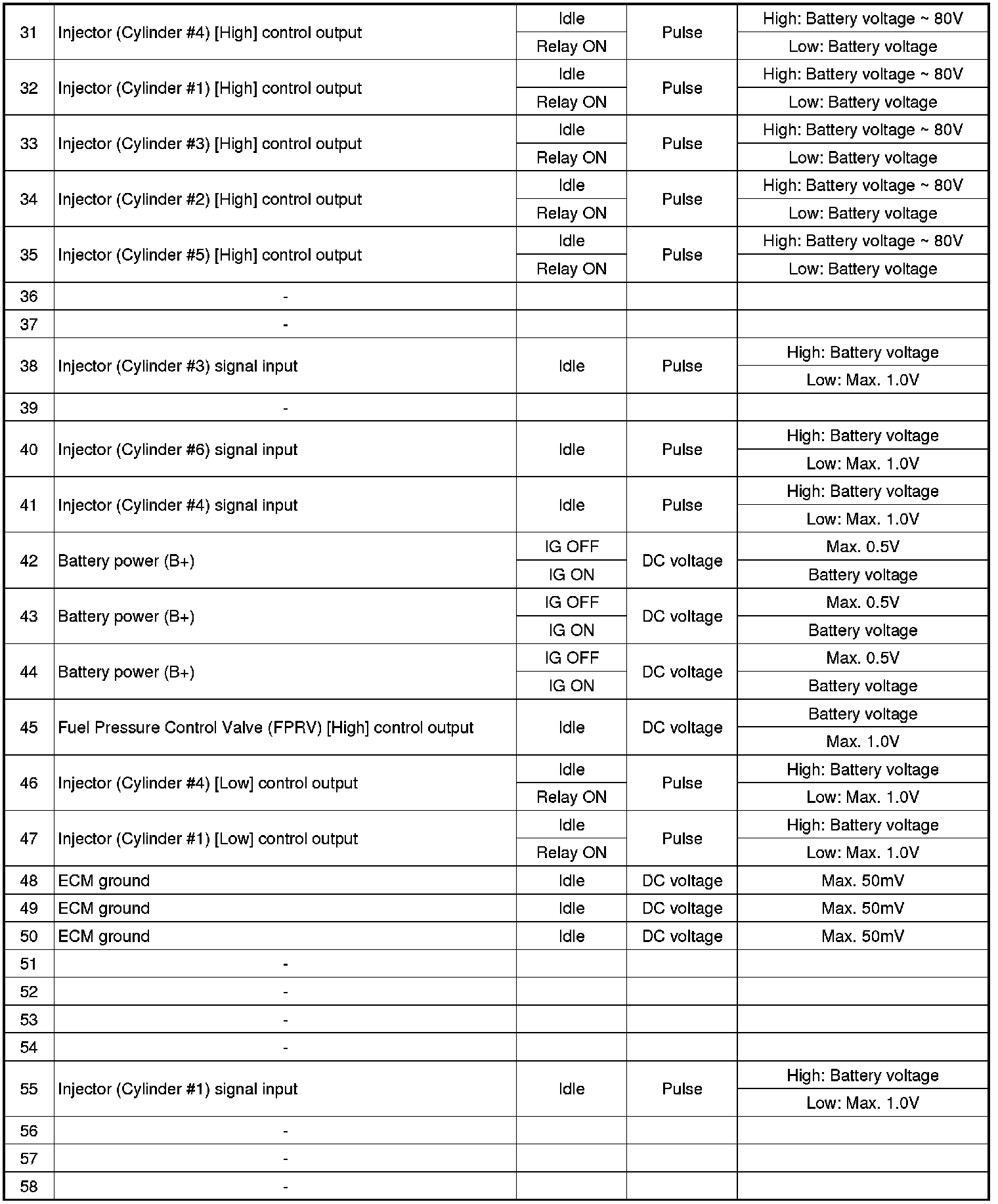

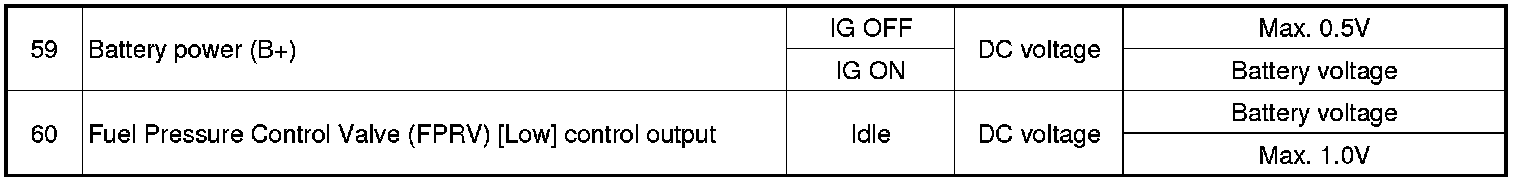

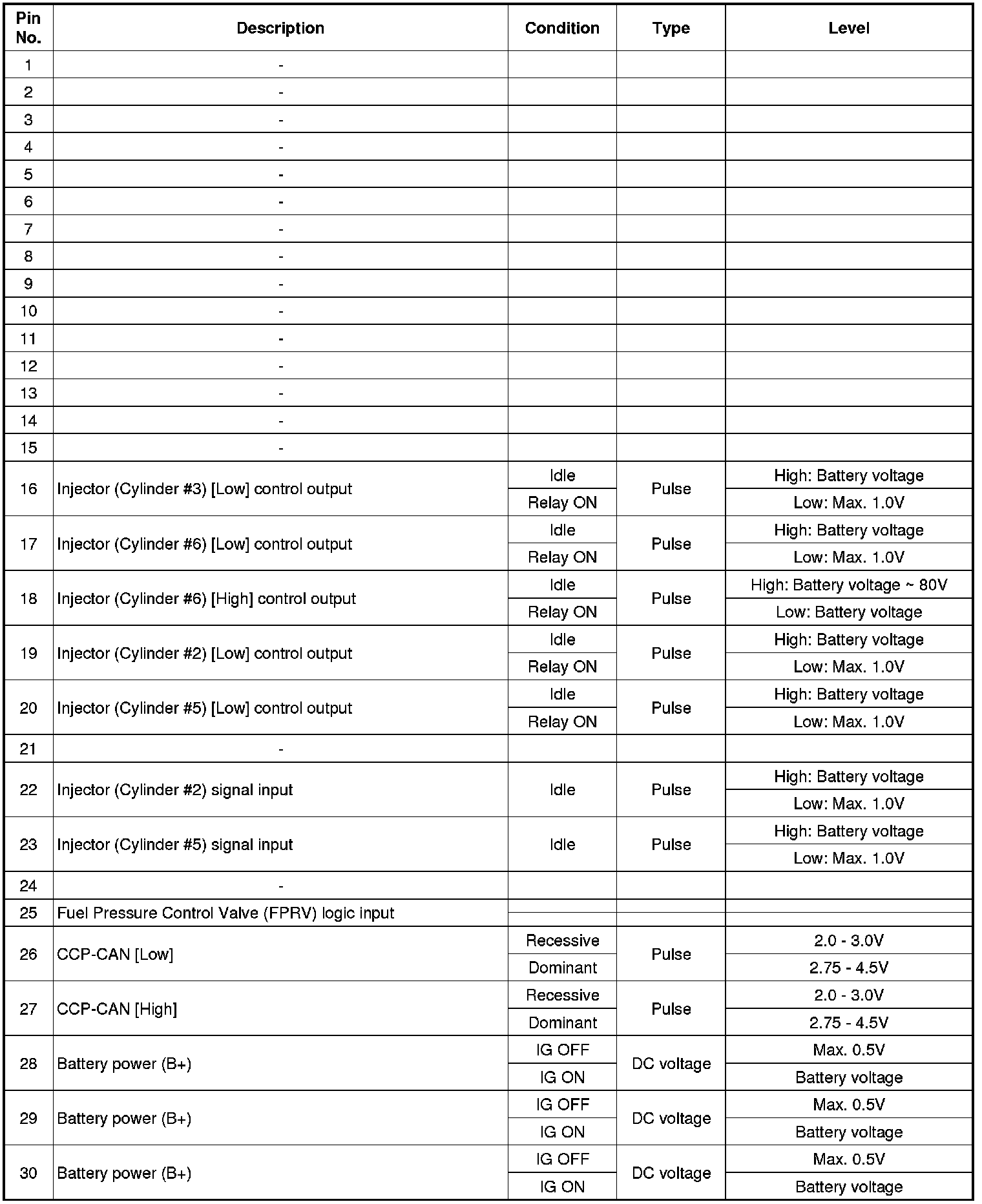

IDB Terminal input/output signal
Connector [CLG-IDB]

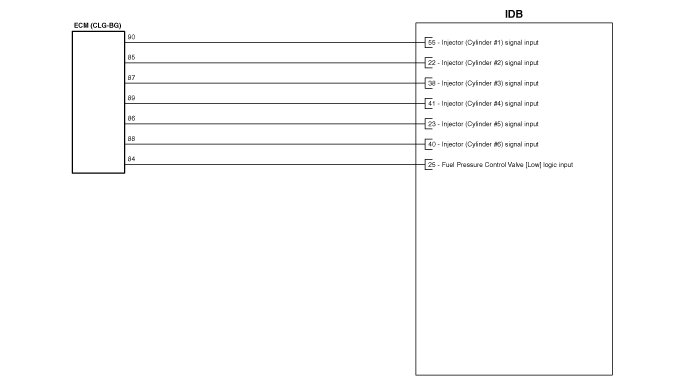

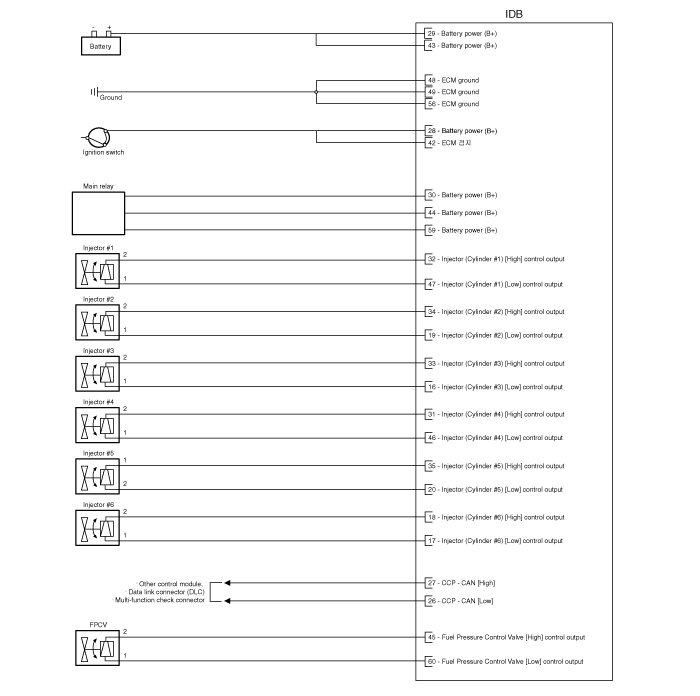

Circuit Diagram
