System Specifications





Specifications

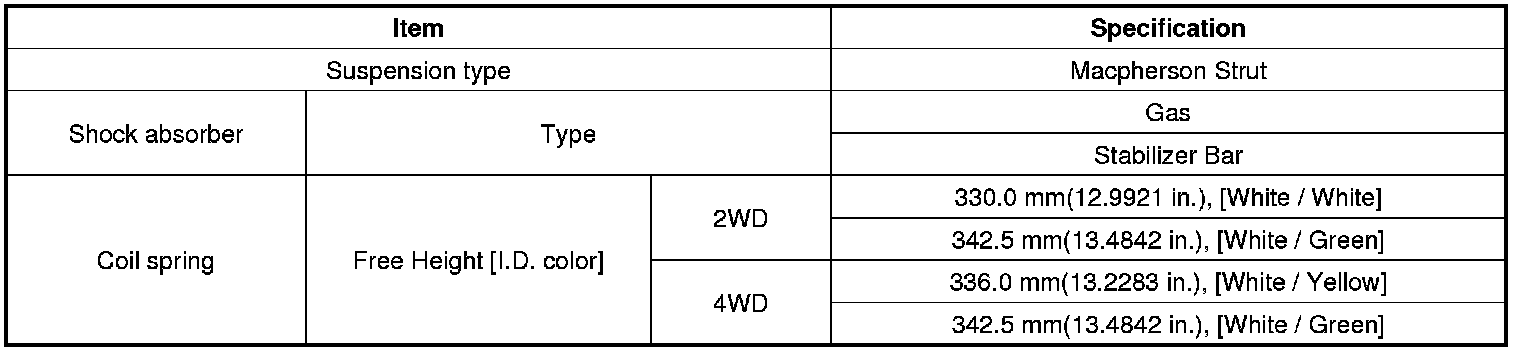

Front Suspension

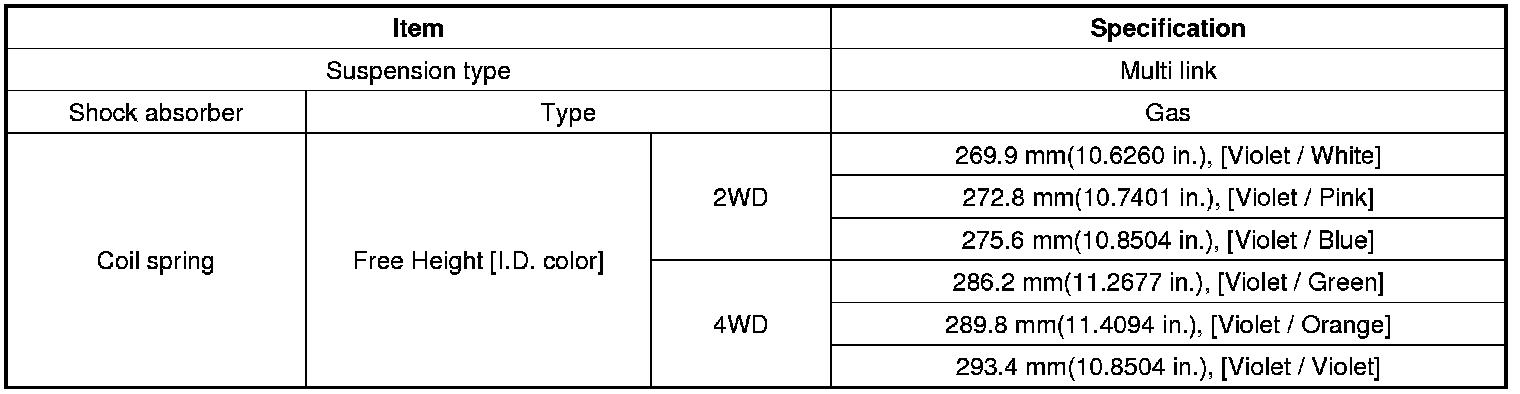

Rear Suspension

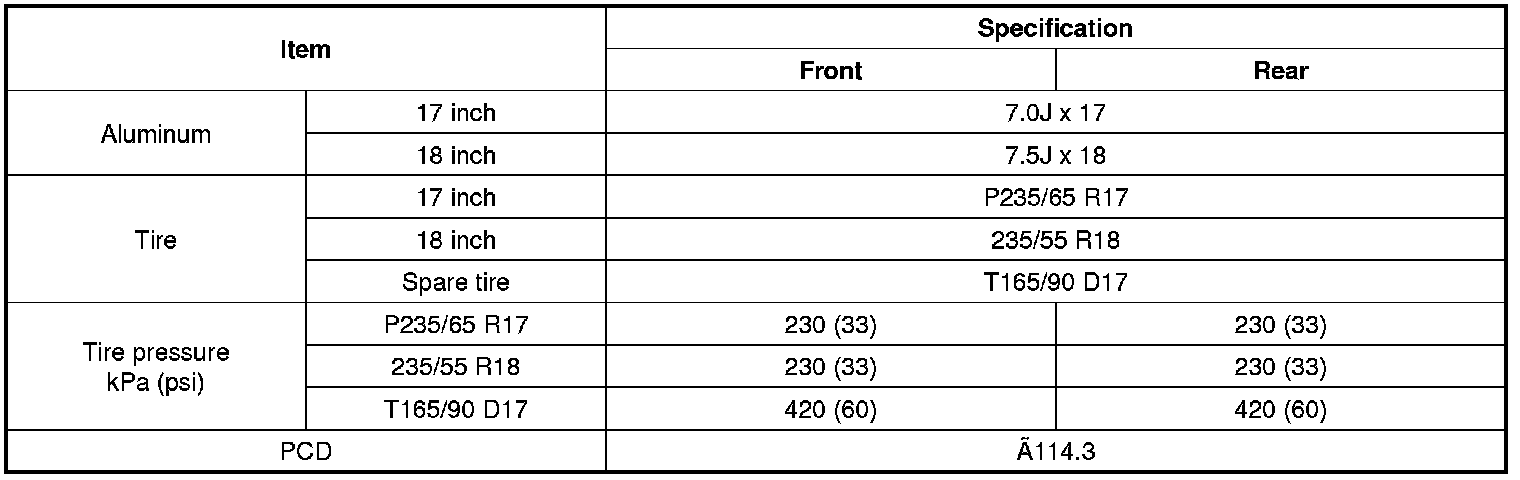

Wheel & Tire

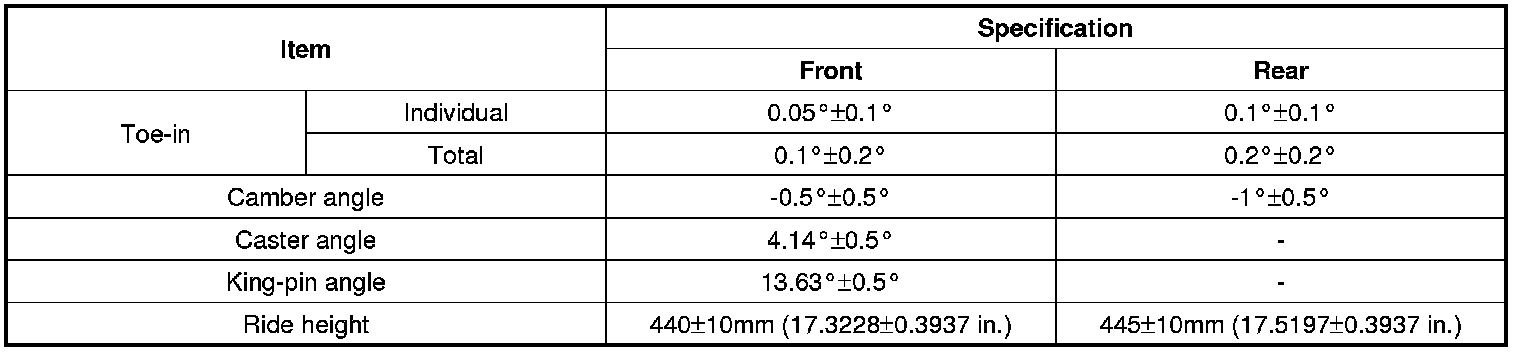

Wheel Alignment [~2012-09-26]

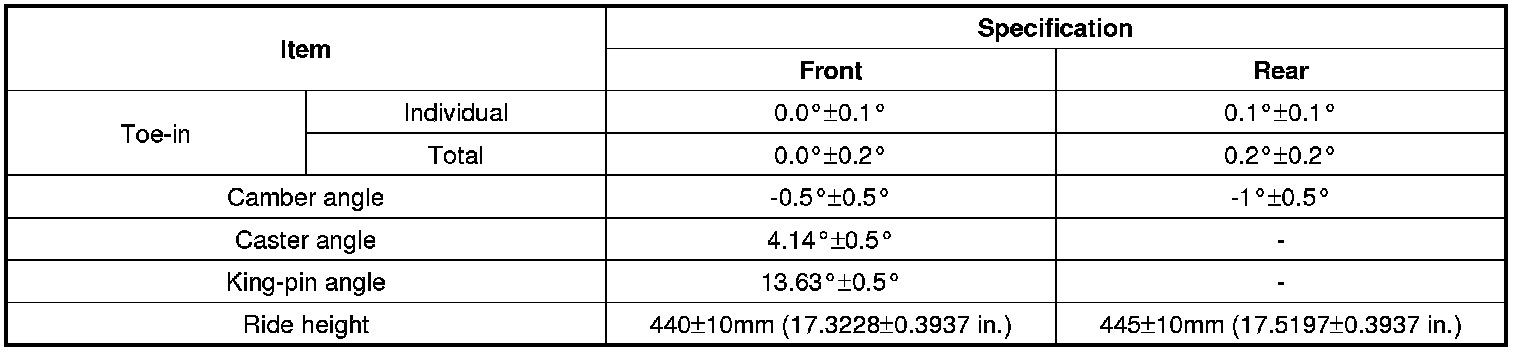

Wheel Alignment [2012-09-27~]






Tightening Torque

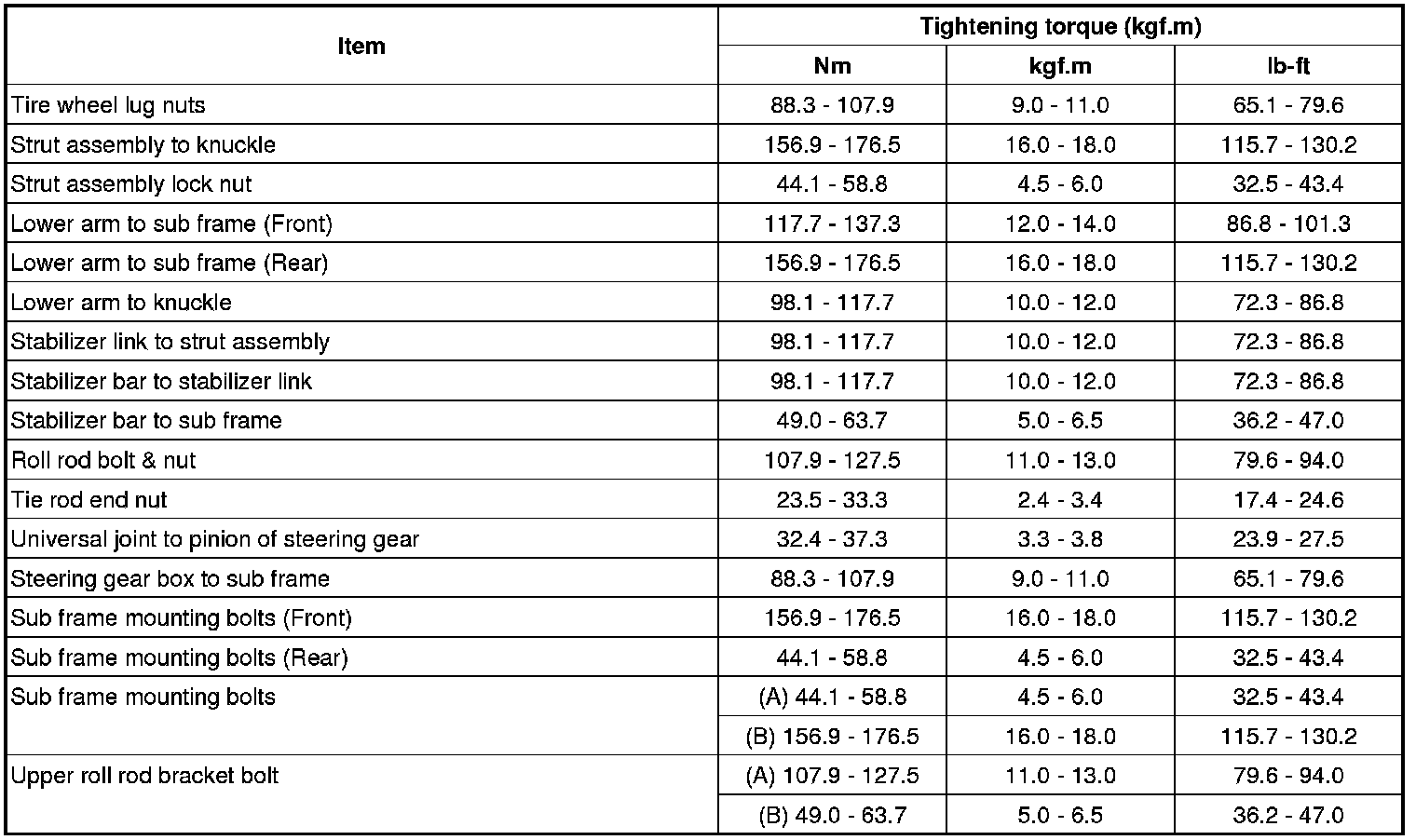

Front Suspension

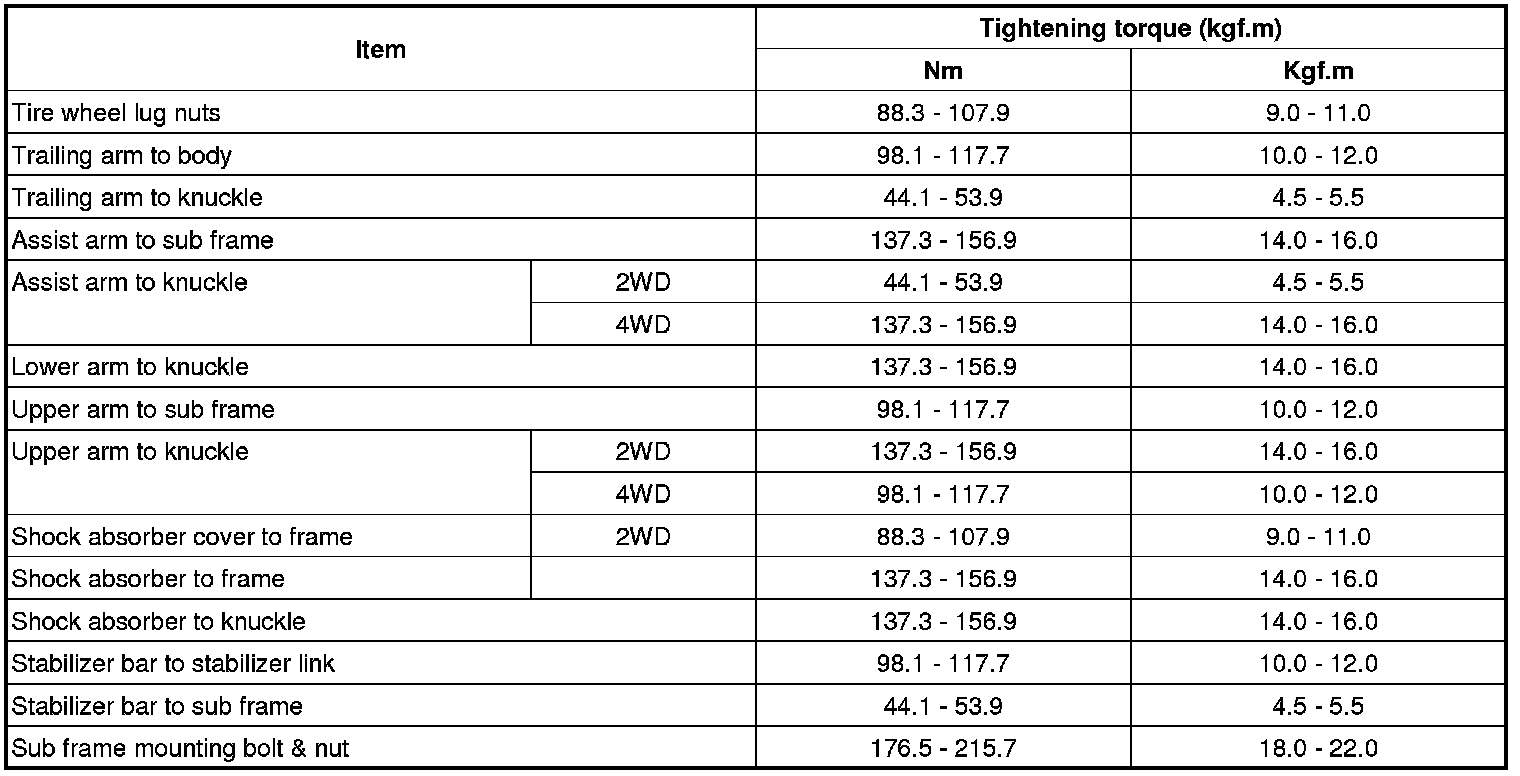

Rear Suspension
