Blower PWM Module Replacement (Service Campaign TP9) (SC TP9)
Publication date: 2013-07-01Reference number: SC TP9
Supersedes refnos: 13-01-032
BLOWER PWM MODULE REPLACEMENT (SERVICE CAMPAIGN TP9)
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 13-01-032, Date of Issue:
July, 2013
| HYUNDAI: | SANTA FE (NC) |
| GROUP: | CAMPAIGN |
DESCRIPTION
This bulletin provides the procedure to replace the blower PWM module for Santa Fe (NC) vehicles equipped with the Dual Automatic Temperature Control A/C system.
IMPORTANT:
*** Dealer Stock and Retail Vehicles ***
Dealers must perform this Service Campaign on all affected vehicles prior to customer retail delivery and whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.
Dealers must perform this Service Campaign on all affected vehicles prior to customer retail delivery and whenever an affected vehicle is in the shop for any maintenance or repair.
When a vehicle arrives at the Service Department, access Hyundai Motor America's "Warranty Vehicle Information" screen via WEBDCS to identify open Campaigns.
Applicable Vehicles:
2013 MY Santa Fe (NC) vehicles equipped with Dual Automatic Temperature Control A/C system
- Produced from January 14, 2013 to May 27, 2013
PARTS INFORMATION
PARTS INFORMATION
| Part Name | Part Number | New Part Identification | |
|---|---|---|---|
| Previous | New | ||
| BLOWER PWM MODULE | New part has a yellow colored label. | ||
| 97235-4RAA0 | 97235-4RAA0QQH | ||
WARRANTY INFORMATION
WARRANTY INFORMATION
| Op Code | Operation | Op Time |
|---|---|---|
| 30C029R1 | BLOWER PWM MODULE REPLACEMENT | 0.3 M/H |
NOTE:
Submit claim on Campaign Claim Entry Screen
SERVICE PROCEDURE

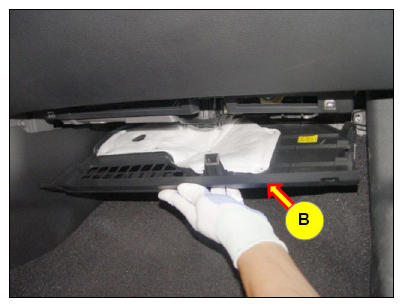

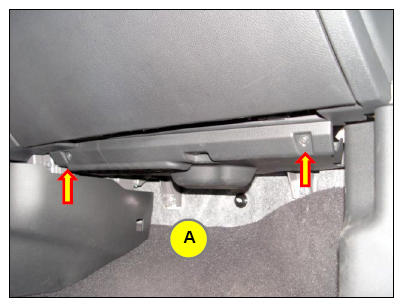

- Remove the mounting screws (A), and then remove the crash pad under cover (B).

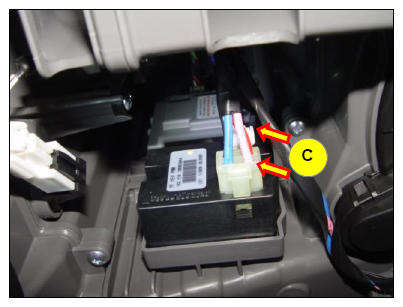

- Disconnect the blower PWM module connectors (C).

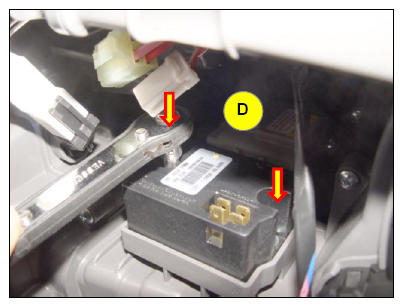

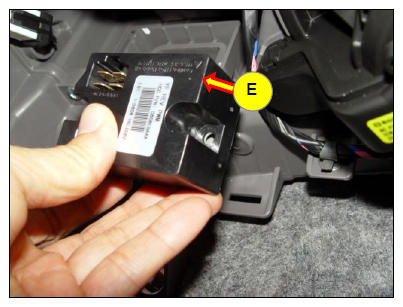

- Remove the mounting screws (D), and then remove the blower PWM module (E).
- Install the new blower PWM module (yellow colored label part as shown in page 1) in the reverse order of removal.
- Operate the A/C blower to verify proper system operation.
