Component Location

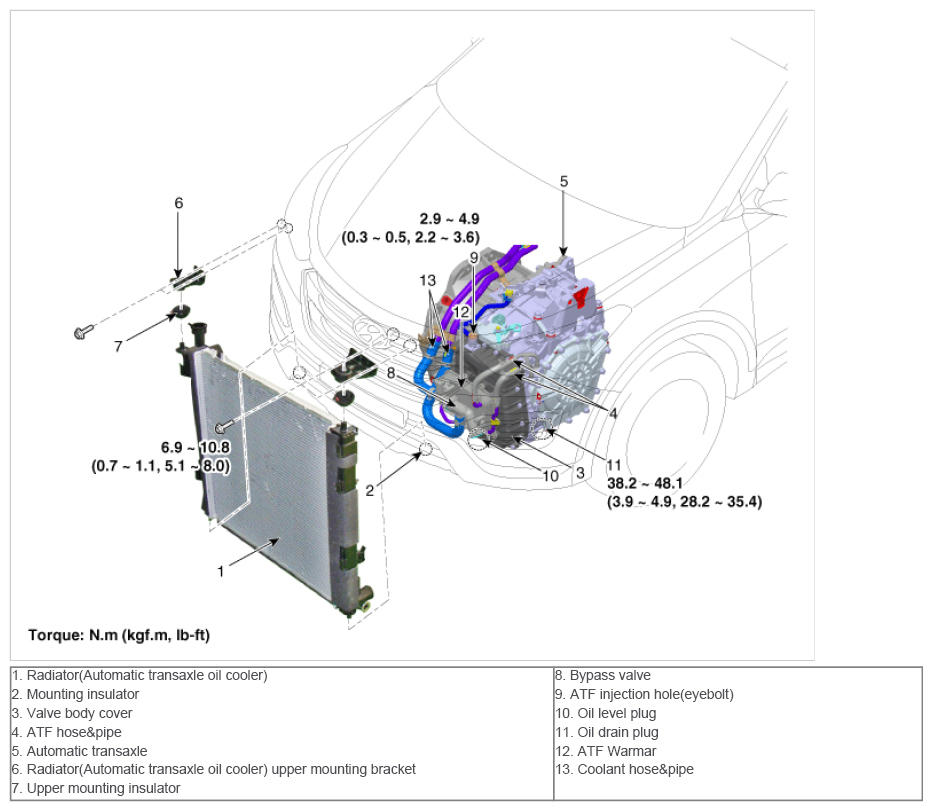

Fig 1: Hydraulic System Component Location (1 Of 2)
G09267624Courtesy of HYUNDAI MOTOR AMERICA

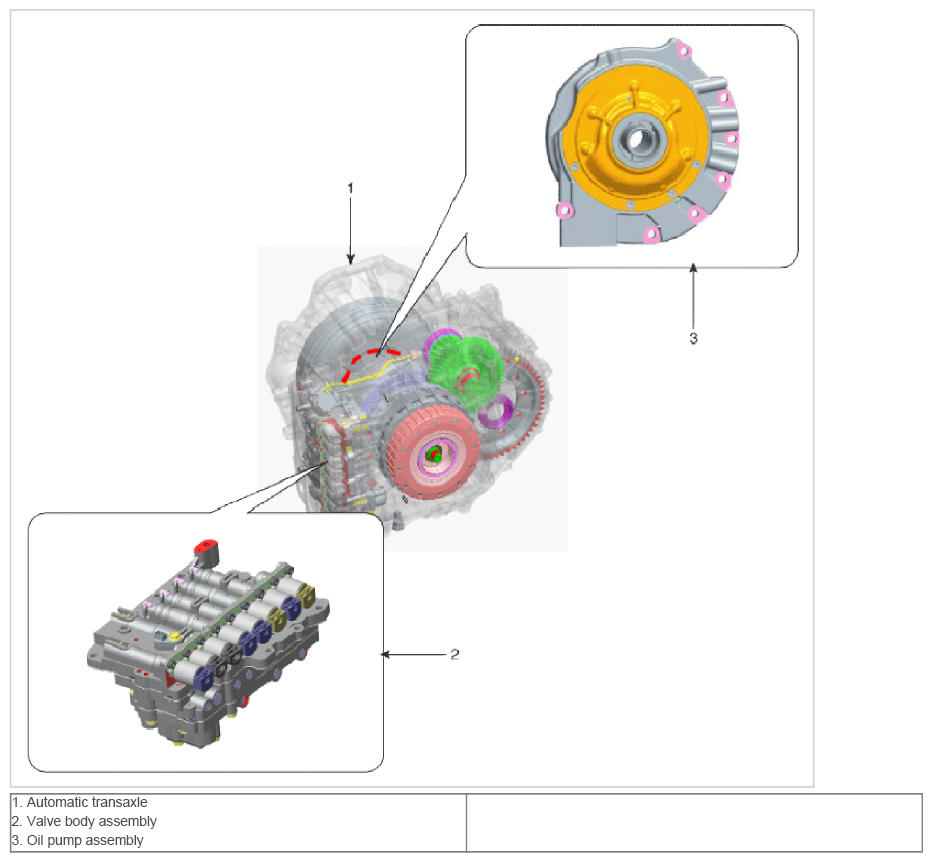

Fig 2: Hydraulic System Component Location (2 Of 2)
G09267625Courtesy of HYUNDAI MOTOR AMERICA
