Components and Components Location: Components

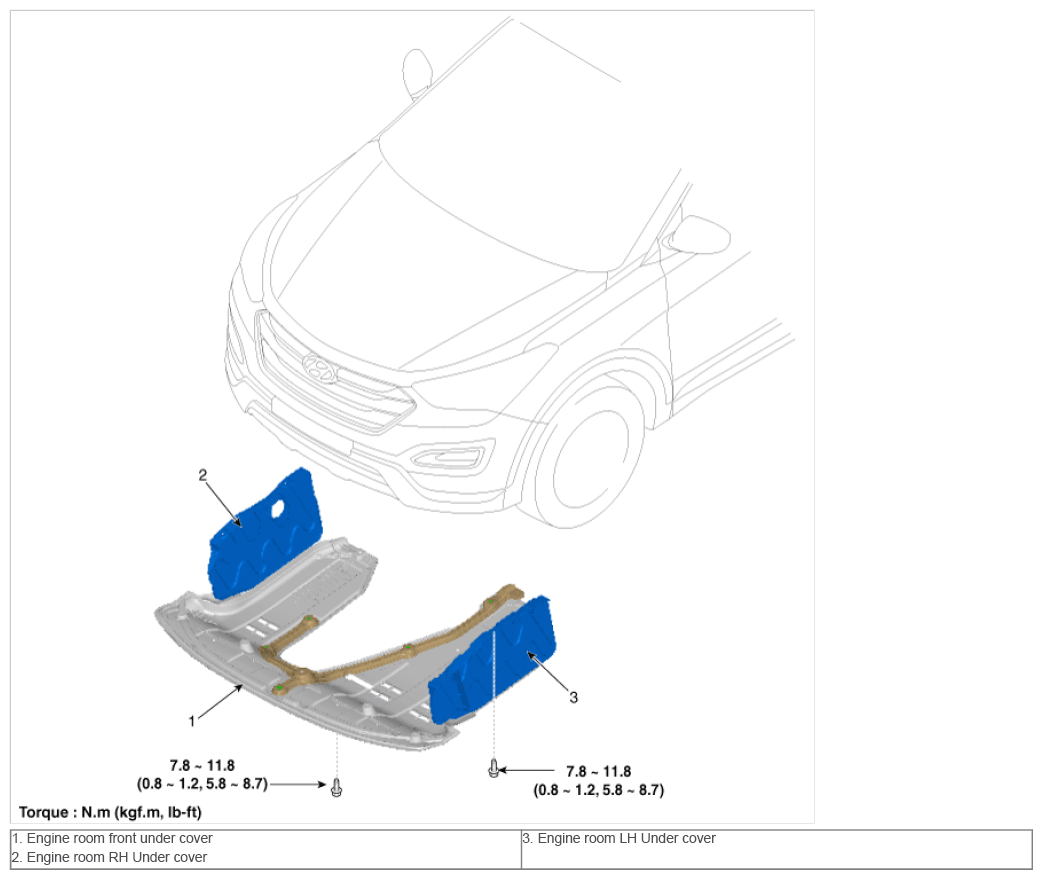

Fig 1: Engine Room Under Cover And Bolts With Torque Specifications
G09267166Courtesy of HYUNDAI MOTOR AMERICA
