Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.
  2. Disconnect the accelerator position sensor connector(A).
  3. Remove the installation nuts (C), the bolt (B) and then remove the accelerator pedal module.

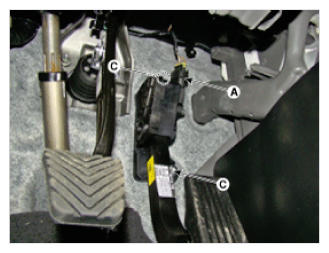

    Fig 1: Identifying Accelerator Position Sensor Connector And Nuts
    G09365028Courtesy of HYUNDAI MOTOR AMERICA

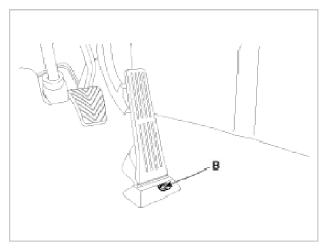

    Fig 2: Identifying Accelerator Pedal Module Bolt
    G09365029Courtesy of HYUNDAI MOTOR AMERICA
