Components and Components Location: Components

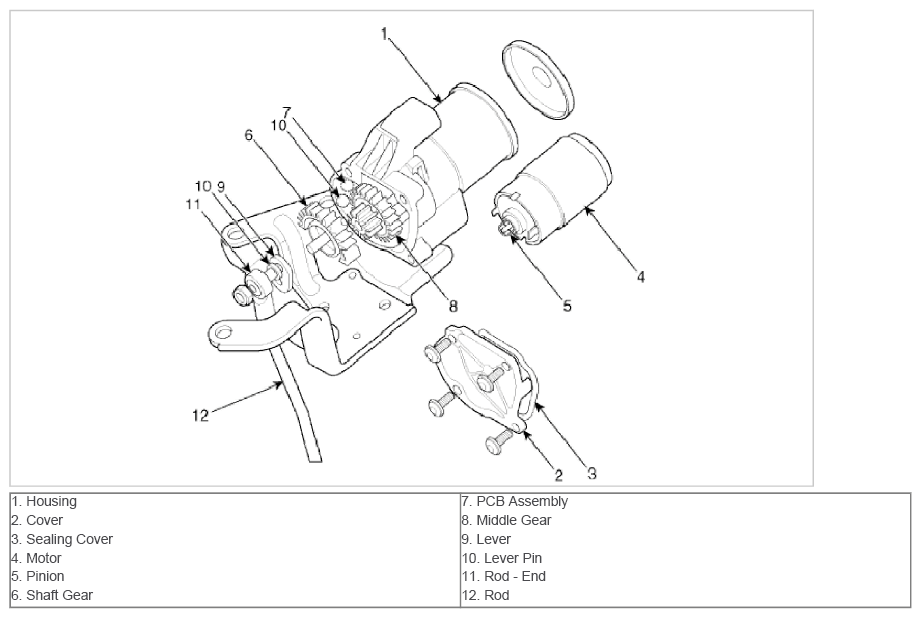

Fig 1: Identifying Electric WGT Control Actuator Components
G09365067Courtesy of HYUNDAI MOTOR AMERICA
