Electric WGT Control Actuator: Specification

EWGA POSITION SENSOR SPECIFICATIONS

Position	Output Voltage [V]	Operating Angle [°]	Range of Rod [mm], reference
Mechanical Close end stop Position (MCP)	4.8	0	0
Electrical Close end stop Position (ECP)	4.2	12	1.8
Electrical Open end stop Position (EOP)	1	79	16
Mechanical Open end stop Position (MOP)	0.5	90	18

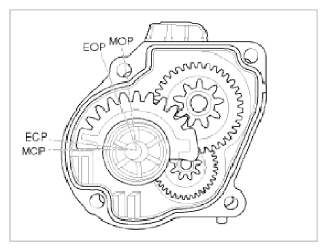

Fig 1: Identifying EWGA Positions

Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Sensor Output Voltage Versus Angle Graph

Courtesy of HYUNDAI MOTOR AMERICA

EWGA DC MOTOR SPECIFICATIONS

Item	Specification
Coil Resistance (Ω)	1.44 ~ 1.96 [21°C (69.8°F)]
