Driver Power Window Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front door trim.

    Refer to FRONT DOOR TRIM .

  3. Remove the power window bezzel assembly (A) after loosening the mounting screws (12EA).

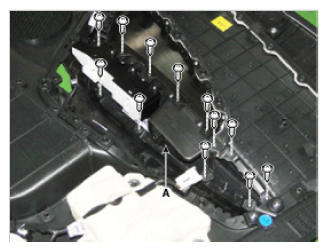

    Fig 1: Identifying Power Window Bezzel Assembly Mounting Screws (12EA)
    G09366368Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the power window switch assembly (A) after loosening the mounting screws (6EA).

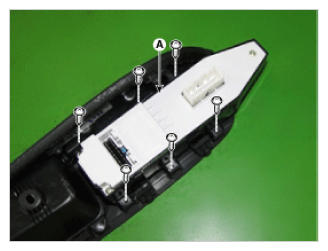

    Fig 2: Identifying Power Window Switch Assembly Mounting Screws (6EA)
    G09366369Courtesy of HYUNDAI MOTOR AMERICA
