Repair procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Remove the resonator and the air intake hose.

    Refer to AIR CLEANER .

  3. Disconnect the ETC module connector (A).
  4. Disconnect the coolant hoses (B).
  5. Remove the installation bolts (C), and then remove the ETC module from the engine.

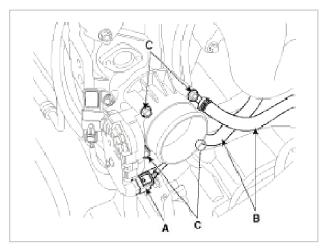

    Fig 1: Identifying ETC Module Connector, Coolant Hoses And Bolts
    G09367453Courtesy of HYUNDAI MOTOR AMERICA
