Repair procedures: Removal

Turn the ignition switch OFF and disconnect the battery negative (-) cable.

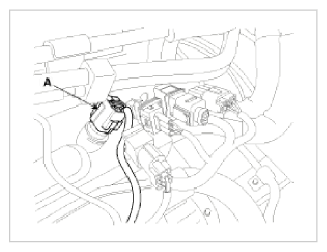

Disconnect the engine coolant temperature sensor connector (A).

Fig 1: Identifying Engine Coolant Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

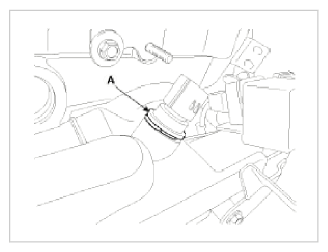

Remove the spring clip (A), and then pull the sensor from the water temperature control assembly.

Fig 2: Identifying Spring Clip
Courtesy of HYUNDAI MOTOR AMERICA

CAUTION: Note that engine coolant may be flowed out from the water temperature control assembly when removing the sensor.
Supplement the engine coolant.
Refer to COOLANT .
