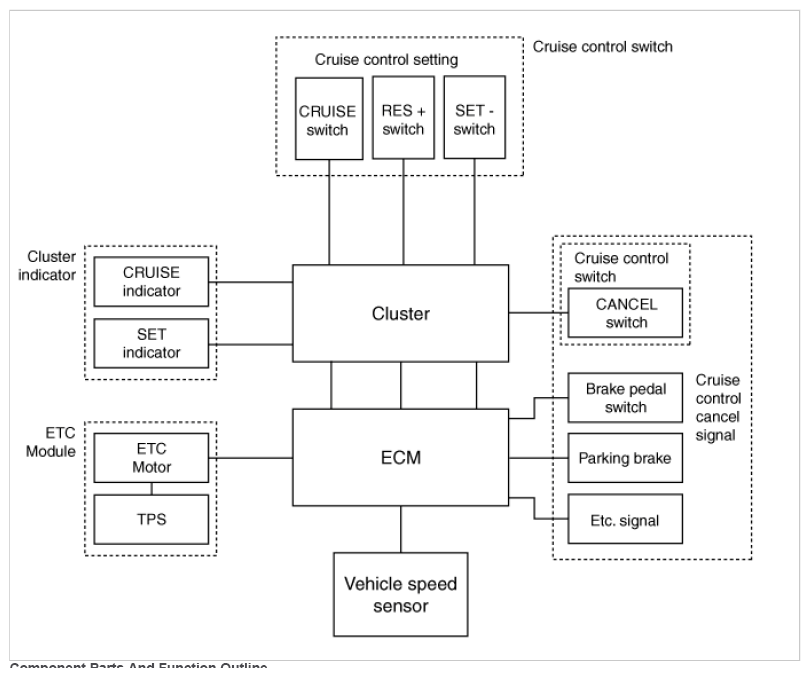

System Block Diagram
WARNING: This page is about a different variant/trim than selected.
COMPONENT PARTS AND FUNCTION OUTLINE
| Component part | Function | |
|---|---|---|
| Vehicle-speed sensor | Converts vehicle speed to pulse. | |
| ECM | Receives signals from sensor and control switches. | |
| Cruise control indicator | Illuminate when CRUISE switch is ON (Built into cluster) | |
| Cruise Control switches | ON/OFF switch | Switch for automatic speed control power supply. |
| RES+ switch | Controls automatic speed control functions by Resume/Accel switch (Set/Coast switch) | |
| SET- switch | ||
| Cancel switches | Cancel switch | Sends cancel signals to ECM. |
| Brake-pedal switch | ||
| Transaxle range switch (A/T) | ||
| ETC motor | Regulates the throttle valve to the set opening by ECM. | |
| * ETC System: Electronic Throttle Control System | ||
