Repair procedures: Removal

  1. Remove the battery and the battery tray.

    Refer to BATTERY .

  2. Remove the under cover (A).

    Tightening torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)

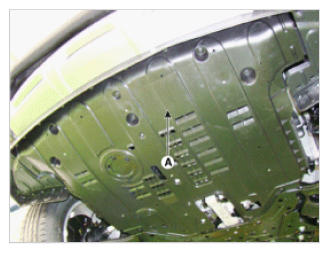

    Fig 1: Identifying Automatic Transaxle System Under Cover
    G09368558Courtesy of HYUNDAI MOTOR AMERICA
  3. Drain the coolant.

    Refer to COOLANT .

  4. Remove the drain plug (A) and reinstall the drain plug after draining ATF totally.

    Drain plug tightening torque:

    38.2 ~ 48.1 N.m (3.9 ~ 4.9 kgf.m, 28.2 ~ 35.4 lb-ft)

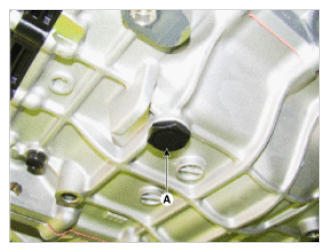

    Fig 2: Identifying ATF Drain Plug
    G09368559Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Replace the gasket before reinstalling the drain plug.
  5. Remove the wiring bracket installation bolt (A).

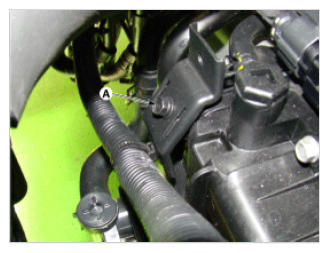

    Fig 3: Identifying Wiring Bracket Installation Bolt
    G09368560Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the ATF Injection hole (eyebolt) (A).

    Eyebolt tightening torque:

    2.9 ~ 4.9 N.m (0.3 ~ 0.5 kgf.m, 2.2 ~ 3.6 lb-ft)

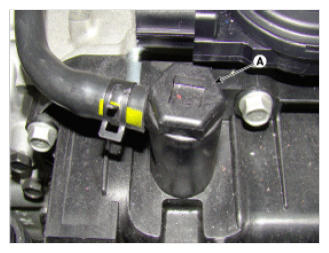

    Fig 4: Identifying ATF Injection Hole (Eyebolt)
    G09368561Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Replace the O-Ring(A) before reinstalling the eyebolt.

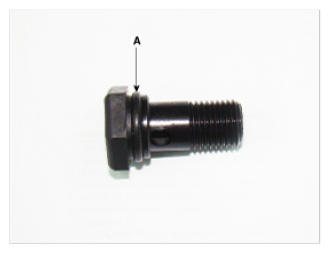

    Fig 5: Identifying Eyebolt O-Ring
    G09368562Courtesy of HYUNDAI MOTOR AMERICA

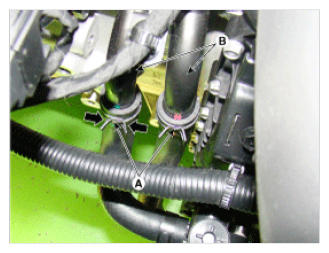

  7. Disconnect the coolant hose (B) after removing the coolant hose clamp (A).
    Fig 6: Identifying Coolant Hose And Clamp
    G09368563Courtesy of HYUNDAI MOTOR AMERICA

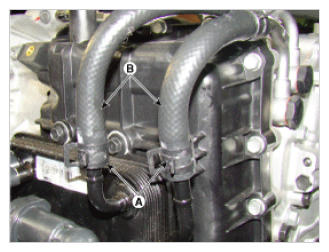

  8. Disconnect the hose (B) after removing the automatic transaxle fluid cooler hose clamp (A).
    Fig 7: Identifying Automatic Transaxle Fluid Cooler Hose And Clamp
    G09368564Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: When hose & pipe assembly

    Align marking of pipe (B), marking of hose (A), and matching color each other.

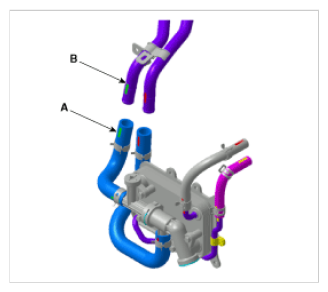

    Fig 8: Identifying Hose And Pipe Assembly Alignment Marks
    G09368565Courtesy of HYUNDAI MOTOR AMERICA

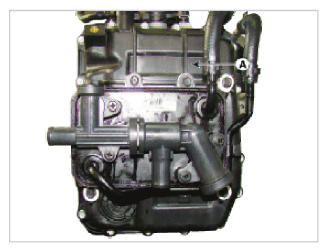

  9. Remove the valve body cover (A).

    Tightening torque:

    1. 13.7~ 15.7N.m (1.4 ~ 1.6 kgf.m, 10.1 ~ 11.6lb-ft)
      Fig 9: Identifying Valve Body Cover
      G09368566Courtesy of HYUNDAI MOTOR AMERICA
      CAUTION:
      • Replace the gasket (A) before reinstalling the valve body cover.

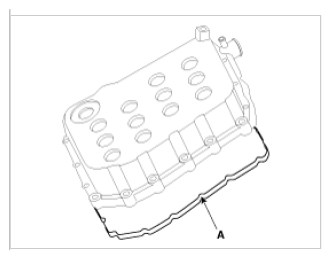

        Fig 10: Identifying Valve Body Cover Gasket
        G09368567Courtesy of HYUNDAI MOTOR AMERICA
  10. Disconnect the oil temperature sensor connector (A).

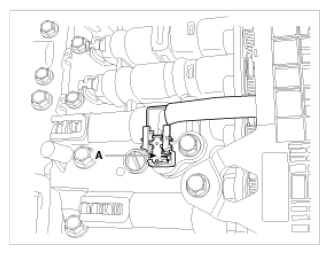

    Fig 11: Identifying Oil Temperature Sensor Connector
    G09368568Courtesy of HYUNDAI MOTOR AMERICA

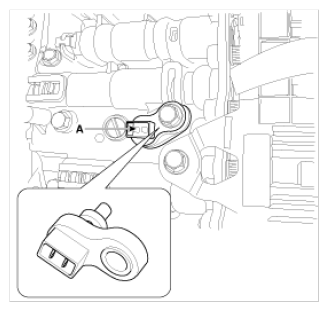

  11. Remove the oil temperature sensor(A) after removing a bolt.

    Tightening torque:

    9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

    CAUTION: Be careful not to damage the harness lock connector.
    Fig 12: Identifying Oil Temperature Sensor
    G09368569Courtesy of HYUNDAI MOTOR AMERICA
