Signal Waveform & Data

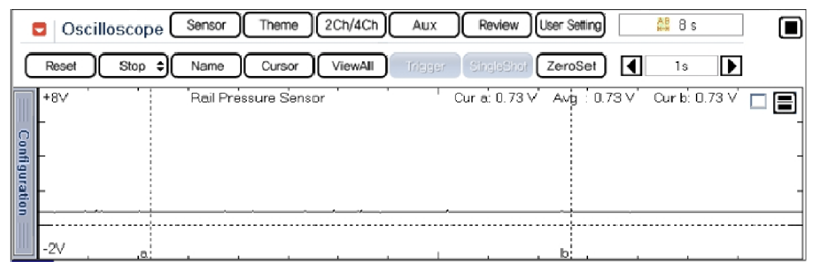

Fig 1: Display - Normal Waveform Of Rail Pressure Sensor At Idle
G09273090Courtesy of HYUNDAI MOTOR AMERICA

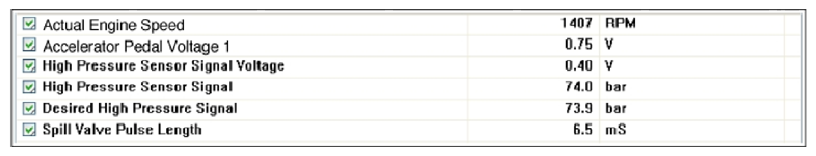

Fig 2: Display - Rail Pressure Sensor Current Data
G09273091Courtesy of HYUNDAI MOTOR AMERICA

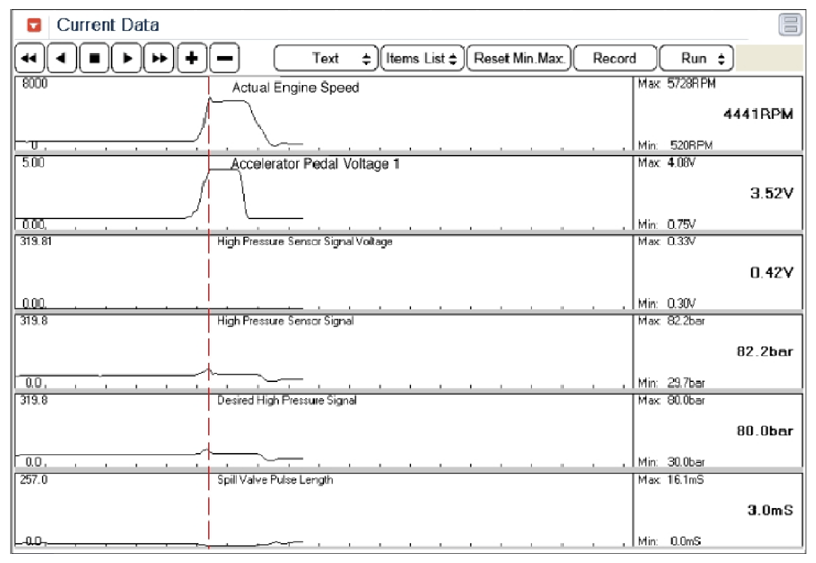

Fig 3: Display - Normal Waveform Of Rail Pressure Sensor At Acceleration
G09273092Courtesy of HYUNDAI MOTOR AMERICA
