Signal Waveform & Data

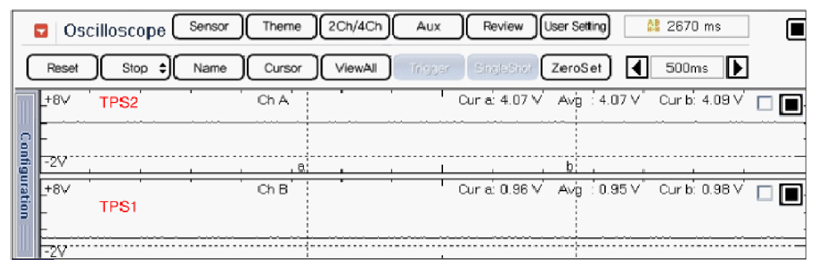

Fig 1: Display - Normal Waveform Of TPS1 & TPS2 (With Acceleration Pedal Not Depressed And IG "ON")

Courtesy of HYUNDAI MOTOR AMERICA

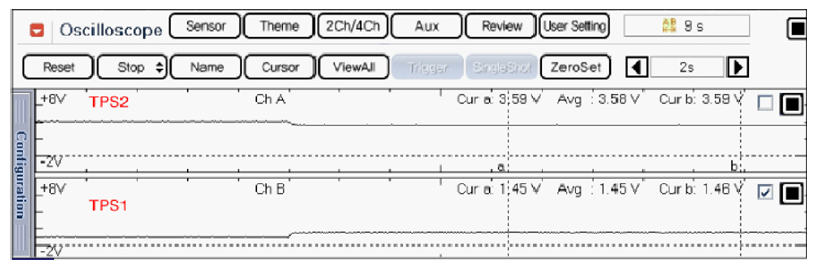

Fig 2: Display - Normal Waveform Of TPS1 & TPS2 (With Acceleration Pedal Depressed And IG "ON")

Courtesy of HYUNDAI MOTOR AMERICA

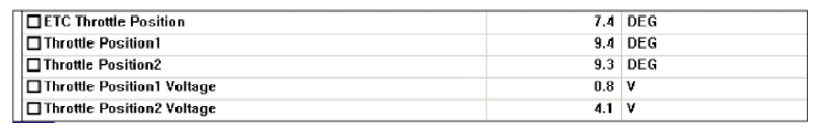

Fig 3: Display - Normal Data Of TPS1 & TPS2 (With IG "ON" Condition)

Courtesy of HYUNDAI MOTOR AMERICA

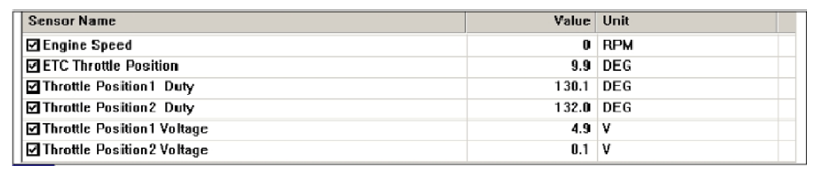

Fig 4: Display - Normal Data Of TPS1 & TPS2 (With Open Condition)

Courtesy of HYUNDAI MOTOR AMERICA

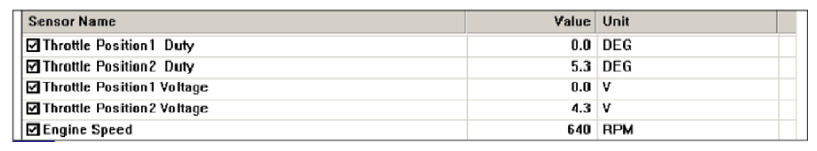

Fig 5: Display - Normal Data Of TPS1 & TPS2 (With Short To Ground In TPS1 Circuit)

Courtesy of HYUNDAI MOTOR AMERICA
