Signal Waveform & Data

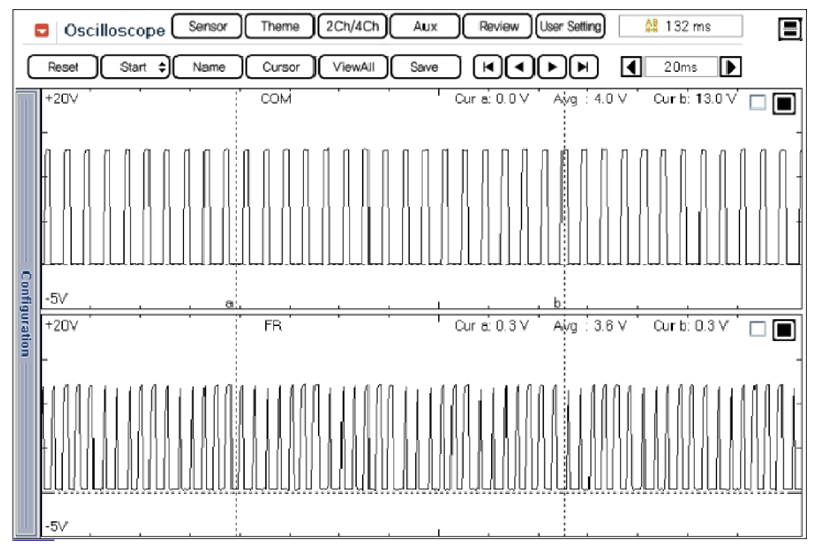

Fig 1: Display - Normal Waveforms Of COM, FR Terminal Of Alternator At Idle
G09273437Courtesy of HYUNDAI MOTOR AMERICA

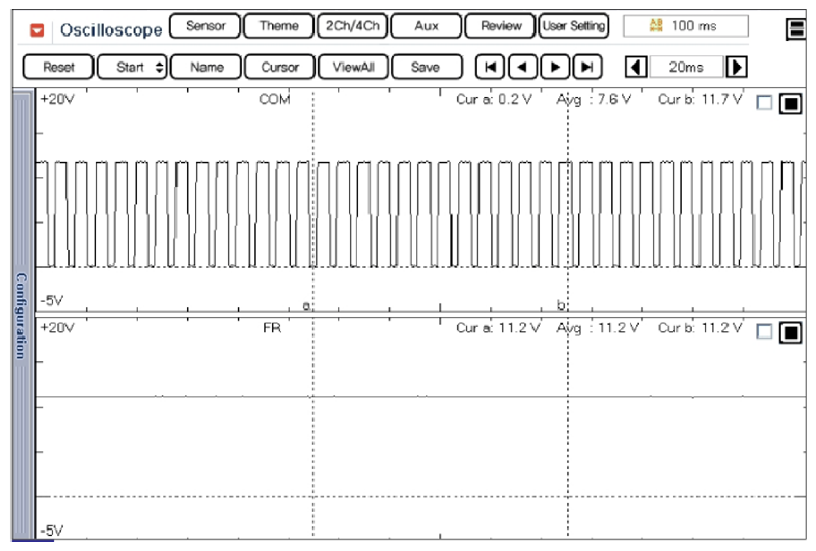

Fig 2: Display - Normal Waveforms Of COM, FR Terminal Of Alternator (With Connector Disconnected Condition At IG ON)
G09273438Courtesy of HYUNDAI MOTOR AMERICA
