Signal Waveform & Data

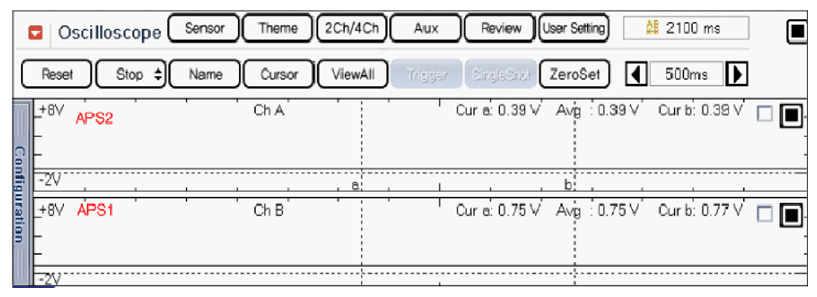

Fig 1: Display - Normal Waveform Of APS1 & APS2 (With No Acceleration)
G09273466Courtesy of HYUNDAI MOTOR AMERICA

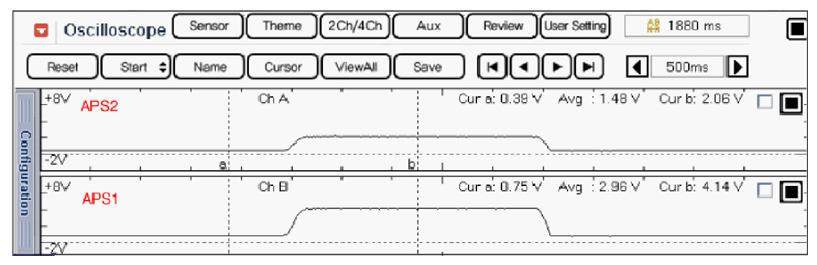

Fig 2: Display - Normal Waveform Of APS1 & APS2 (With Acceleration)
G09273467Courtesy of HYUNDAI MOTOR AMERICA

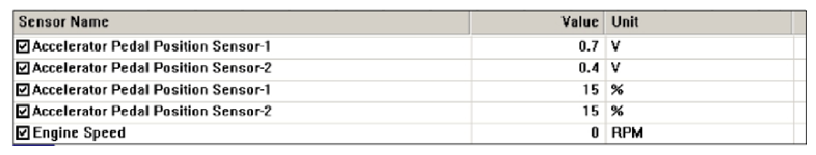

Fig 3: Display - Normal Data Of APS1 & APS2 At IG "ON"
G09273468Courtesy of HYUNDAI MOTOR AMERICA

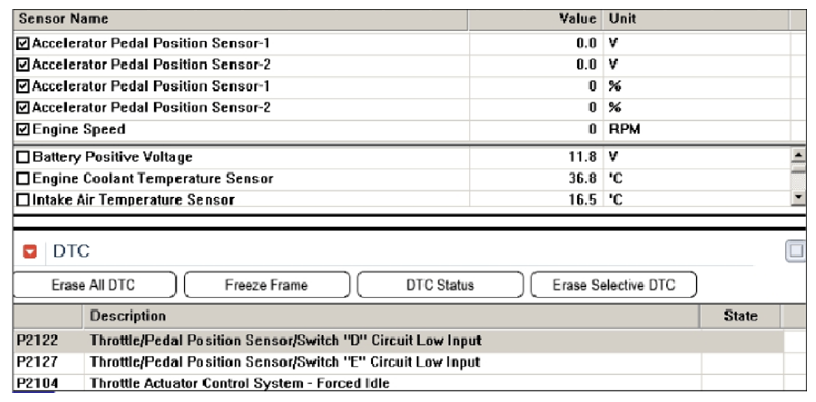

Fig 4: Display - Abnormal Data Of APS1 & APS2
G09273469Courtesy of HYUNDAI MOTOR AMERICA
