Signal Waveform & Data

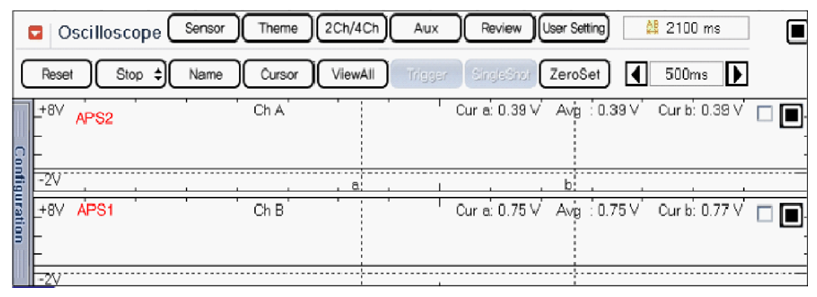

Fig 1: Display - Normal Waveform Of APS1 & APS2 (With No Acceleration)
G09273487Courtesy of HYUNDAI MOTOR AMERICA

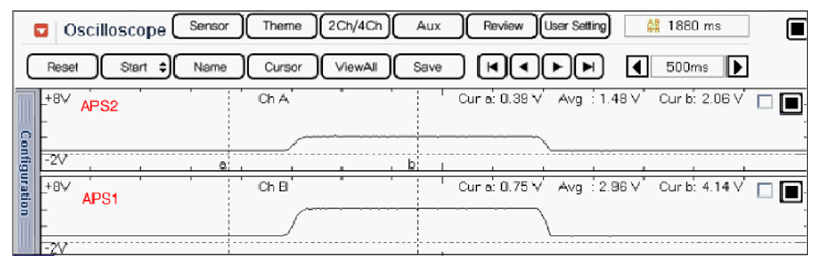

Fig 2: Display - Normal Waveform Of APS1 & APS2 (With Acceleration)
G09273488Courtesy of HYUNDAI MOTOR AMERICA

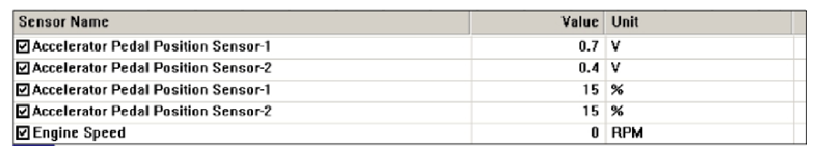

Fig 3: Display - Normal Data Of APS1 & APS2 At IG "ON"
G09273489Courtesy of HYUNDAI MOTOR AMERICA

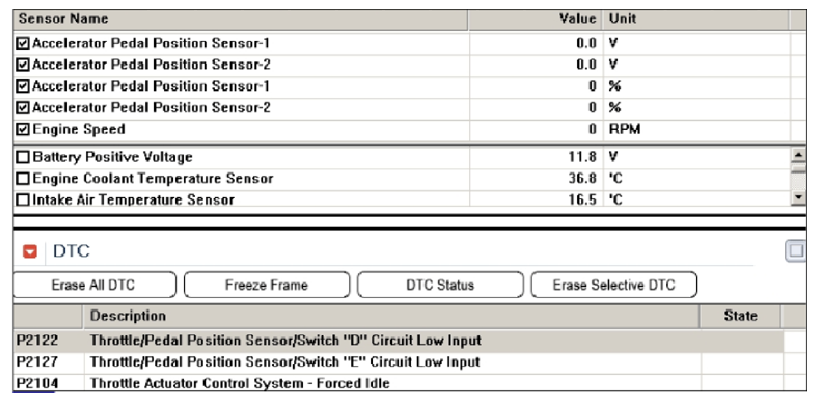

Fig 4: Display - Abnormal Data Of APS1 & APS2
G09273490Courtesy of HYUNDAI MOTOR AMERICA
