Ambient Temperature Sensor Connector End View (E71)

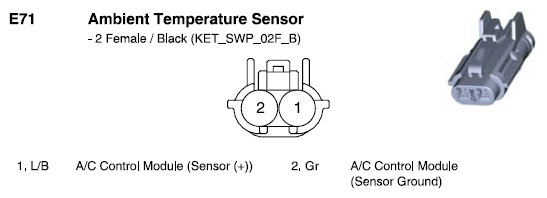

Fig 1: Ambient Temperature Sensor Connector End View (E71)
G10787621Courtesy of HYUNDAI MOTOR AMERICA
