Cooling Fan Controller Connector End View (E73)

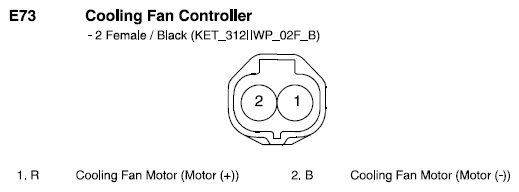

Fig 1: Cooling Fan Controller Connector End View (E73)
G10787623Courtesy of HYUNDAI MOTOR AMERICA
