Front Impact Sensor RH Connector End View (E74)

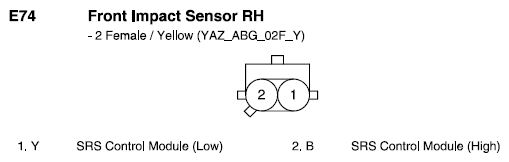

Fig 1: Front Impact Sensor RH Connector End View (E74)
G10787624Courtesy of HYUNDAI MOTOR AMERICA
